Laboratory exercises in physics for secondary schools (1902)
Twiss, George Ransom, b. 1863 · New York, London, The Macmillan company · leaf 36

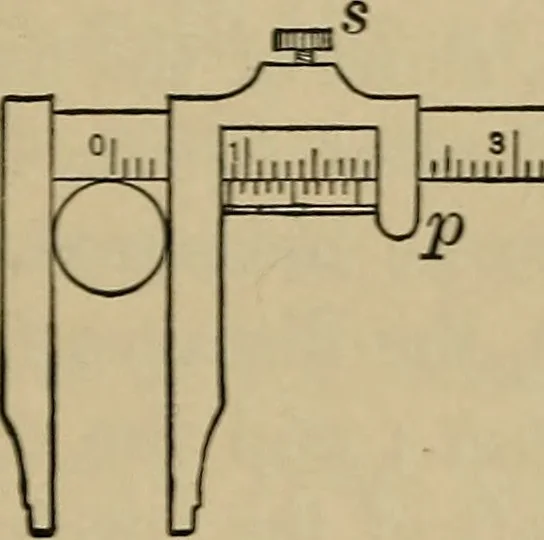

B BY THE VERNIER SLIDE CALIPER Apparatus. —The additional apparatus is the ver-nier slide caliper. Operations. — Each dimension is to be measured atleast twice; the individual and mean values are tobe recorded in tabular form as before; and the meanvolume is to be computed. (a) Loosen the set… … .ilnnlmilmU hliii.l.i.Il.mlinXuli Fig. 2. —Vernier Slide Caliper. and, with the thumb on the projection, press thejaws together against the two bases of the cylinder,so that they are just in contact with the respectivebases. (5) By means of the set screw, fasten the movablejaw in position, remove…
