Beck, Conrad, 1864- · London, R. & J. Beck, Ltd. · leaf 55

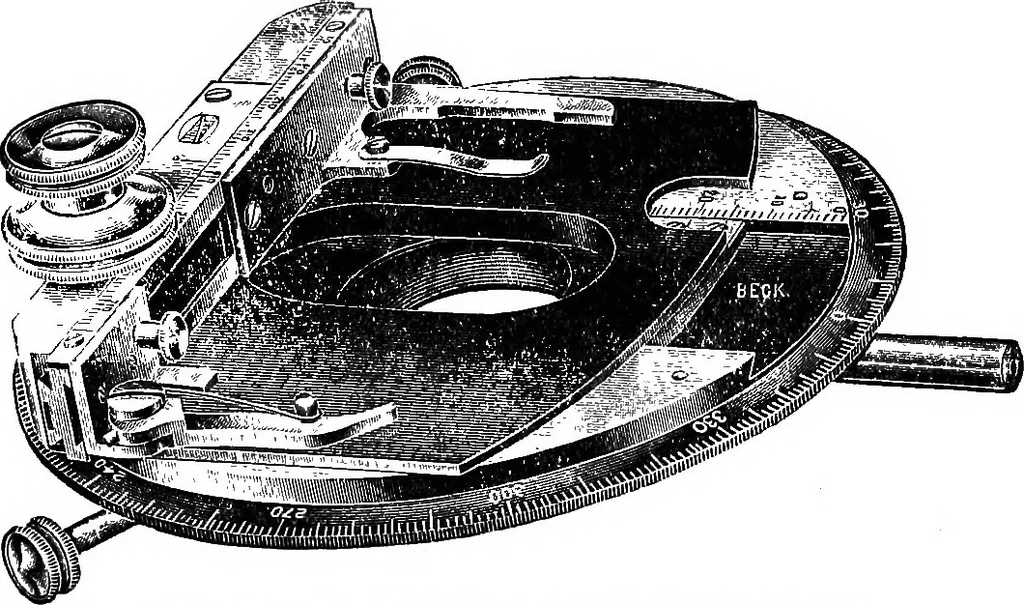

the mechanical stage, but the wholebase-plate moves laterally to and fro. The mechanical portion ofthe stage can be racked completely ofi the circular stage, leavinga plain stage-plate for the examination of large objects; but inthis case a small readjustment of substage apparatus is requiredto… … Fig. 45.—^No. 3306, Rotating Meehanieal Stage. Centringrotating CMass slip. The ordinary mechanical stage is made to take only the 3-inchstandard length sUde. It has a lateral travel of 2^ inches(55 mm.) and a vertical travel of 1 inch (25 mm.). Fig. 98, page 105, shows another form of mechanical…
Microscopy
