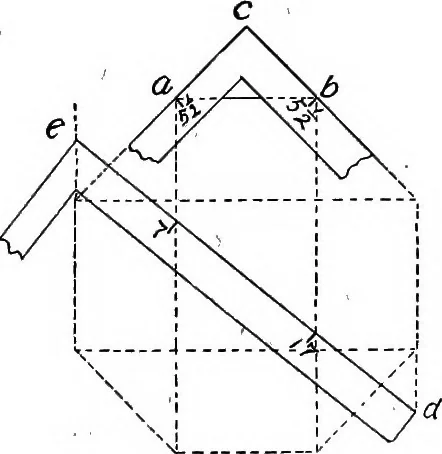

orners as cen-ters, and one half of the length ofthe diagonals as radii of circles. <lG. 62. — To OCTAGON A Given Timbeb.Method 4. The following problems will be found valuable inlaying out the runs of rafters for buildings which are octagonal or hexagonal in shape. 41. Given the side of an… … Fig. 63. — Given the Side ofAN Octagon to find theWidth. Another method is to reducethe side of the octagon to an inch scale, and to make twoparallel lines upon the bevel board as far apart as the 64 CONSTRUCTIVE CARPENTRY 4- .- -MK- / I i Fig. 641 — Given the SideOF A Hexagon to findTHE Width.…
