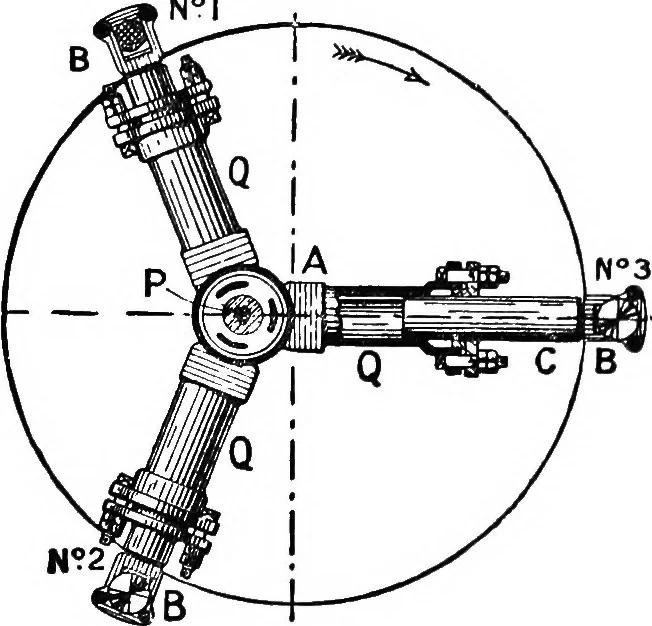

Riggs Hydraulic Engine.—A further illustration of thepin-and-slot mechanism is Riggs hydraulic engine, illustrated in^„, Fig. 203. The three cylin- ^~ ders Q are cast in one piece with a circular valvewhich revolves on a stud,P; and the plungers C,instead of being connectedto the second fixed stud… … Fig. 203. The working side of the plunger is, of necessity, the side nearestto A. The water is admitted and discharged through openings inthe circular valve, the shaft P being hollow to allow this to be done.The action is precisely the same as in the previous case. Thehigh-pressure water acting on…
