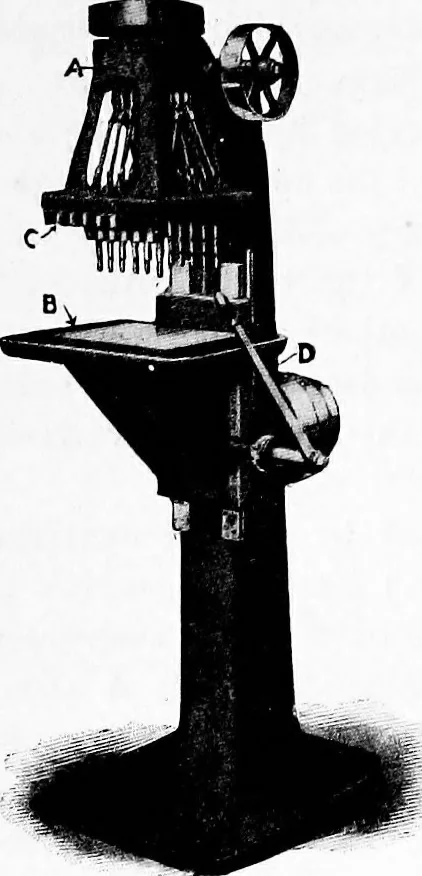

of the coupling link betweenthe drill-head and drill, may be pro-vided for by making it in the formof a spindle surrounded by a sleeve,the connection between the two beingby means of a feather key. The spindle-heads are provided withvertical adjustment on the arm to compensate for variation… … Fio. 219. (5) Double Slider-crank Chain. § 139. Oldhams Coupling.—It has been shown that a motion of continuous rotation may be transmitted between two parallel shafts either by the sUder-crank chain (pin-and-slot mechanism) or by By MeBsre. Pratt & Whitney ATECHANISMS-CONSISTING OF FOUR LOWER…
