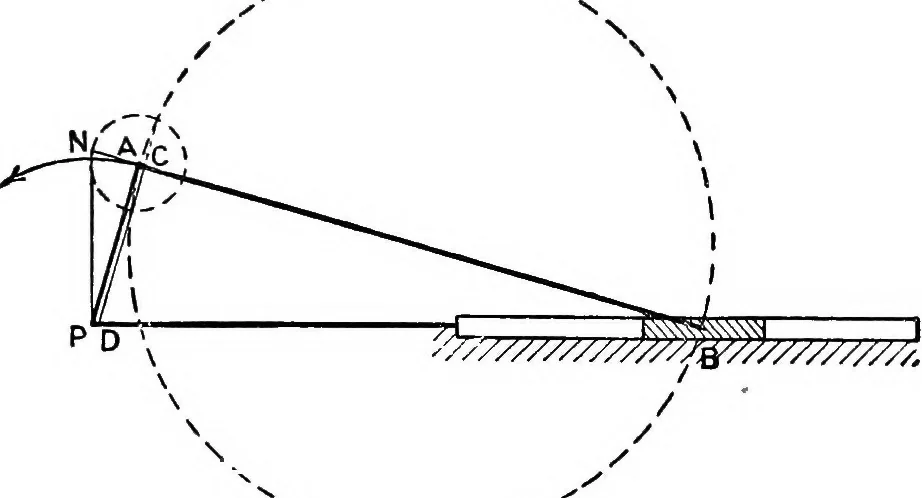

is from left to right, so that the acceleration of the piston is whl- 1 + -\ or the retardation is &)M 1 Y as before. To find the position of the crank arm for which the accelera-tion of the piston is zero, the position of the mechanism must befound which makes the points D and P (Fig. 274)… … Fig. 281. Fig. 281 shows Kleins construction repeated for the position of themechanism in which the crank arm and connecting rod are per-pendicular to each other. The common chord of the two circlesis parallel to the crank arm, and the acceleration of the piston isrepresented by DP. It can be…
