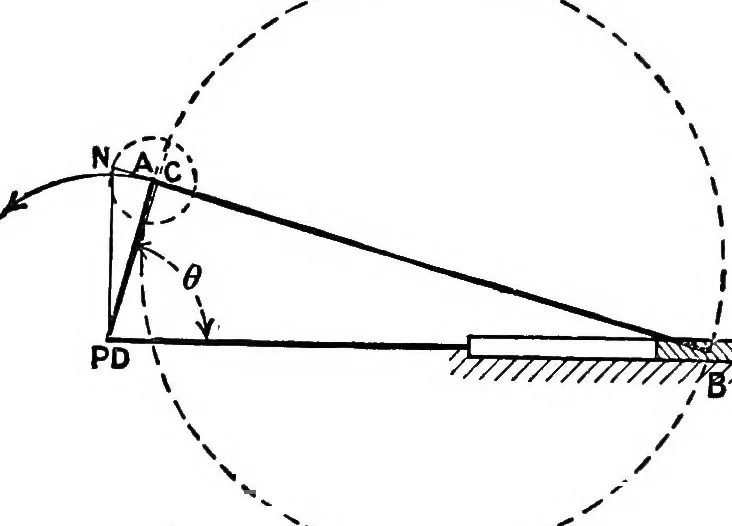

dinary values of n, the multiplier of wV is so very smaU that it may be invariablyneglected. 256 MECHANISM. For the acceleration to be truly zero, the position of themechanism must be that shown in Fig. 282, in which the commonchord passes through P. If 0 be the crank angle corresponding tothis… … ^^^^^..yyy.yr7:^))yyy^^^y. Fia. 282. methods.* The value of 0 given by this equation differs very littlefrom the value given by the equation— 0 = tan~* n which represents the value of the crank angle when the crank armand connecting rod are perpendicular (Fig. 281). Thus, for ex-ample, when TO = 4,…
