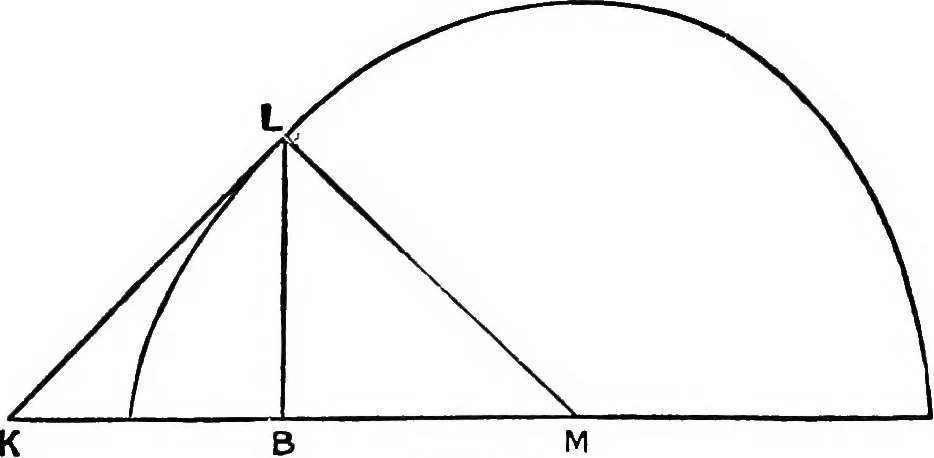

lutionsin that interval of time would be doubled, the angular accelerationof the crank shaft will be SOOtt radians per minute, and the tan-gential acceleration of the crank pin will be 1880 feet per minuteper minute. Thus the centripetal acceleration is about 2500 timesthe tangential, and the… … Fi8. 287. in Fig. 277, may be deduced directly from the curve of velocitypf the piston, shown in Fig. 181. Thus, suppose that Fig. 287 269 MECHANISM. represents the curve of velocity on a piston base, so that when thepiston is in the position B, its velocity is BL. Draw the normalLM to the curve at…
Machinery, Kinematics of
