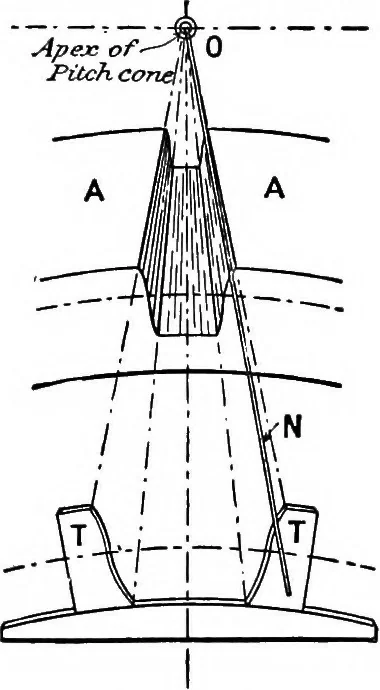

e tool will always movealong straight lines radiating from 0, and the blank wiU be cutto the proper shape. The mechanical arrangement of the machine is shown inPi<TS. 357, 358; Fig. 357 representing a sectional side elevation,and Fig. 358 a plan. The bevel wheel A, to be cut, is mountedon a… … Fig. 356. 324 MECHANISM. bearing at the apex 0 of the pitch cone. The other end is capableof movement in a vertical plane, and can be fixed on a graduatedquadrant B at any desired angle. A dividing gear, C, turns theblank into successive positions for cutting the required number ofteeth, and while…
