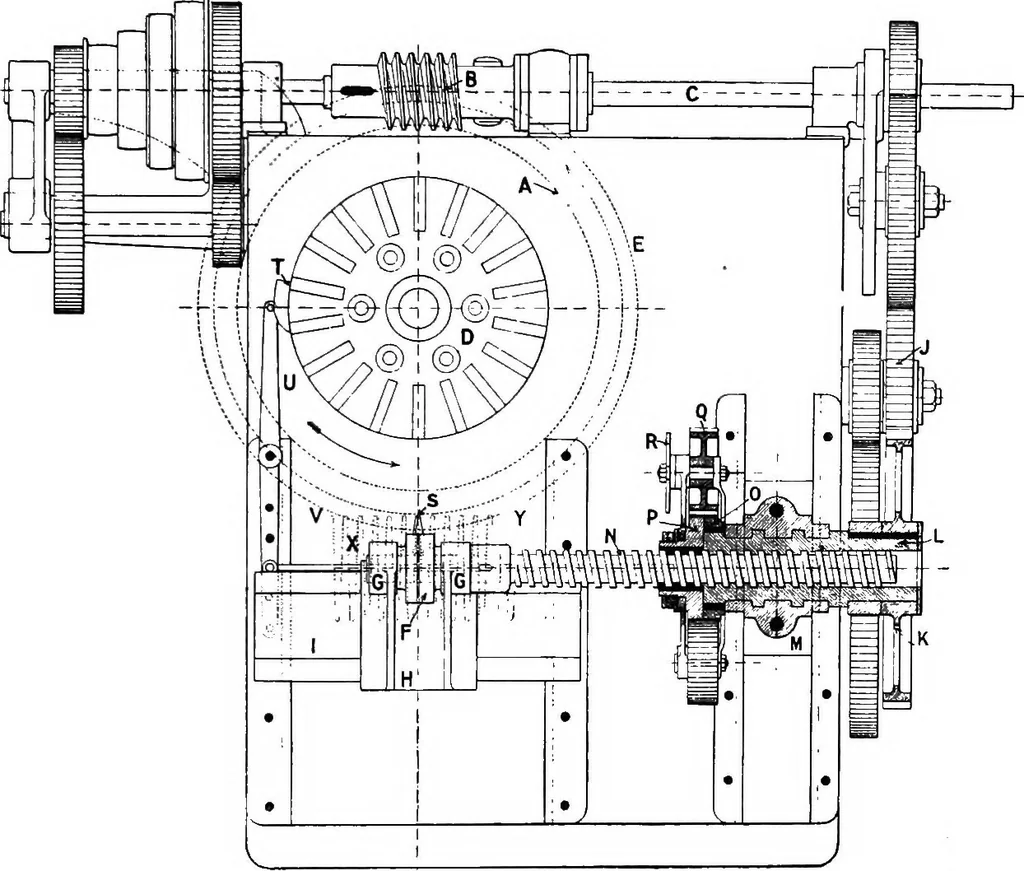

n Figs. 361, 362 ; Fig.361 being a sectional elevation through the axis of the standard TOOTHED CIRCULAR WHEELS. 329 worm wheel, and Fig. 362 a sectional plan.> A standard wormwheel. A, operated by a driving worm, B, keyed to the drivingshaft C„is used to rotate a faceplate, D, to which the… … Fia. 362. be clamped down by side strips. The carriage H can also slidefreely in the direction of the cutter shaft. The driving shaft C andcutter shaft F are geared together by the change wheels J (seen atthe side of the machine in Fig. 362). These change wheels give thesame velocity ratio between…
