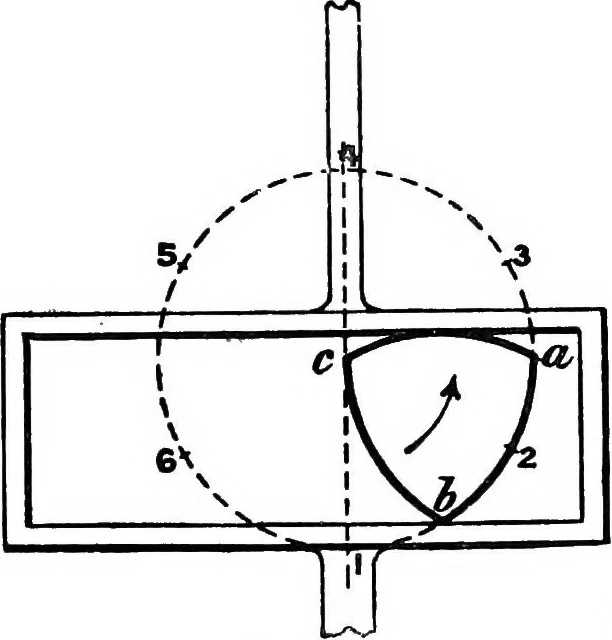

3, . . . Asthe angle a moves from 1 to2, the distance of the lowerbar from the centre of rota-tion Pi will remain constant,and so the slider wUl be atrest; as it moves from 2 to 3,the angle h will be alwaysin contact with the lower bar,and therefore .the motion is exactly the same as if a pin,… … Fig. 406. 366 MECHANISM. similarly, in the return stroke the slider will remain at rest as amoves from 4 to 5, and will move harmonically as a moves from5 to 1. § 214. General Case of a Botating Cam acting on a Becipro-cating Cam provided with a Plane Face.—In the case of theeccentric (Fig. 405) or…
