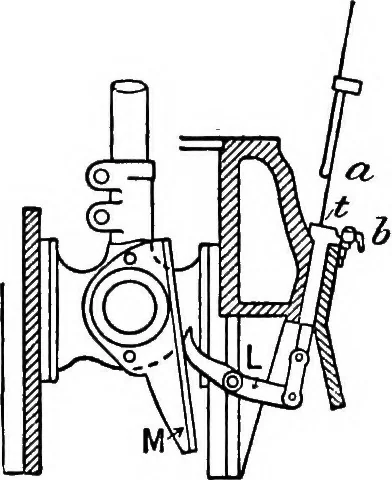

ngthe adjustment of the cords of the indicator, as well as doingaway with unnecessary wear. The problem, from our point of view, is obtain the propershape of the curve L. The displacement of the plunger ought tobe exactly proportional to the displacement of the piston, so thatthe angles turned… … Fio. 115. NON-CIRCULAR WHEELS. 373 cam plate fixed, and imagine the engine guide bars to rotate aboutthe cam centre, and so obtain the successive positions of the in-clined plate relative to the cam shaft. The curve enveloping thesesuccessive positions is the curve required. For example, let the…
