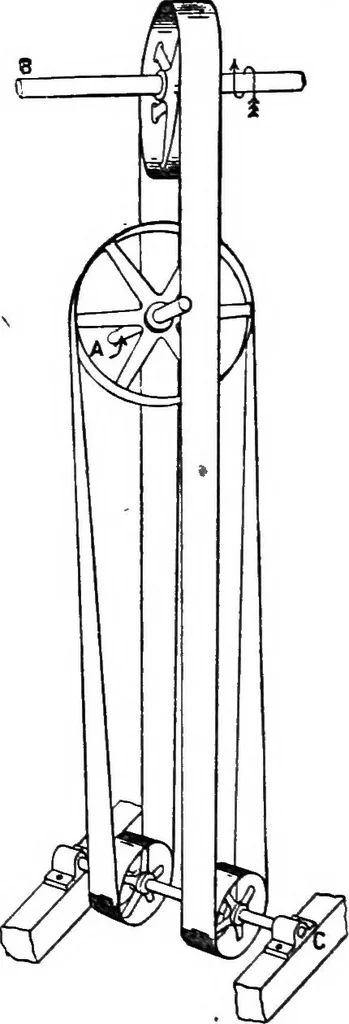

for example.Fig. 37 shows two shafts, A and B,which are perpendicular to each otherand very near together, connected bymeans of an endless belt passing overtwo guide pulleys which ride looselyupon the spindle G.^ Whatever thedirection of motion, the central planeof each pulley passes through the… … Pig. 37. American Machinist, March 16, 1901. SIMPLE MACHINES AND MACHINE TOOLS, ETC. 31 M^ \^y § 28. Tackle. Pulley Blocks.—In belt drives, the object ingeneral is to transmit motion and force between two rotatingshafts which turn in fixed bearings. In place of a flat belt, arope or cord may be…
