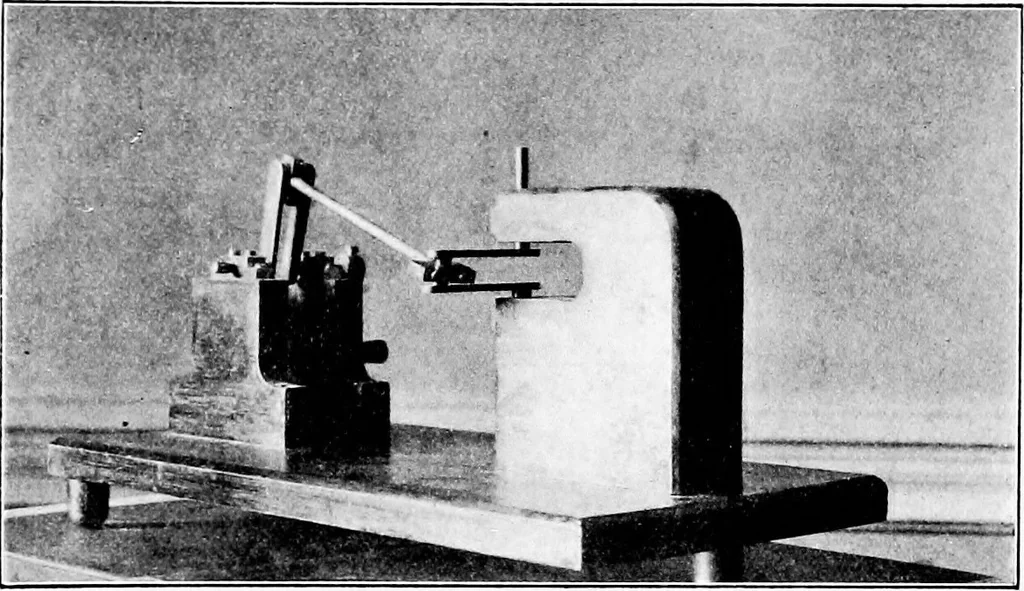

the distance between the shafts—773 inches—and the hinge-lines at its ends are perpendicular to each other.Taking a and 6 to have the values already given, a = 7-73, 6 = 2,a = 90°, and /3 = 15°; these quantities satisfying (as nearly as may be) the equation of condition ^ = —7-^. Fig. 449 shows a a… … Fig. 4.50. In Fig. 447 a nut and collar may be seen near one end of eachlink, and a word of explanation is due. Each link of this model,in point of fact, is made in two parts—a wire carrying the hinge atone end moving in a sleeve carrying the hinge at the other, thetwo parts being clamped together…
