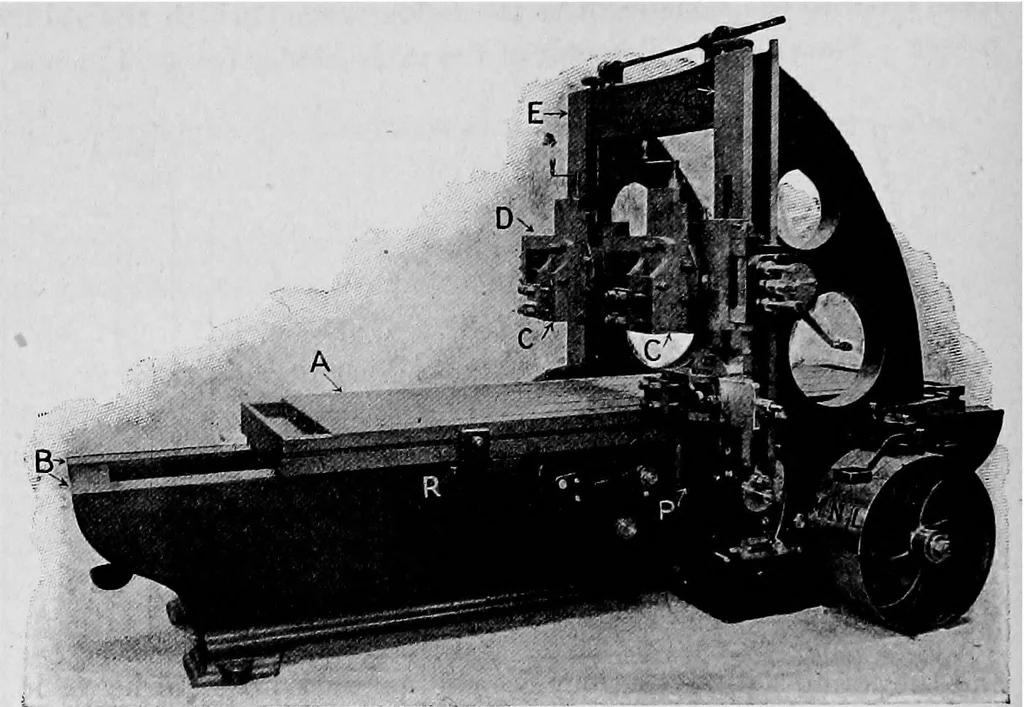

pi is fixed, whUst the table, to which the work is attached, 48 MECHANISM. reciprocates to and fro in a horizontal direction. The tahle isdriven from the shop shafting, which continuously rotates in onedirection, through a train of mechanism; and the problem is toarrange the train of mechanism so… … Fig. CO. two V-shaped parallel grooves, B, B, formed in the top of the bed-plate. The tool is attached to the tool box C, which is carried bythe cross-rail D, supported by the columns E, E, so that theposition and height of the tool over the table may be readilyadjusted. Ordinarily, the tool cuts…
