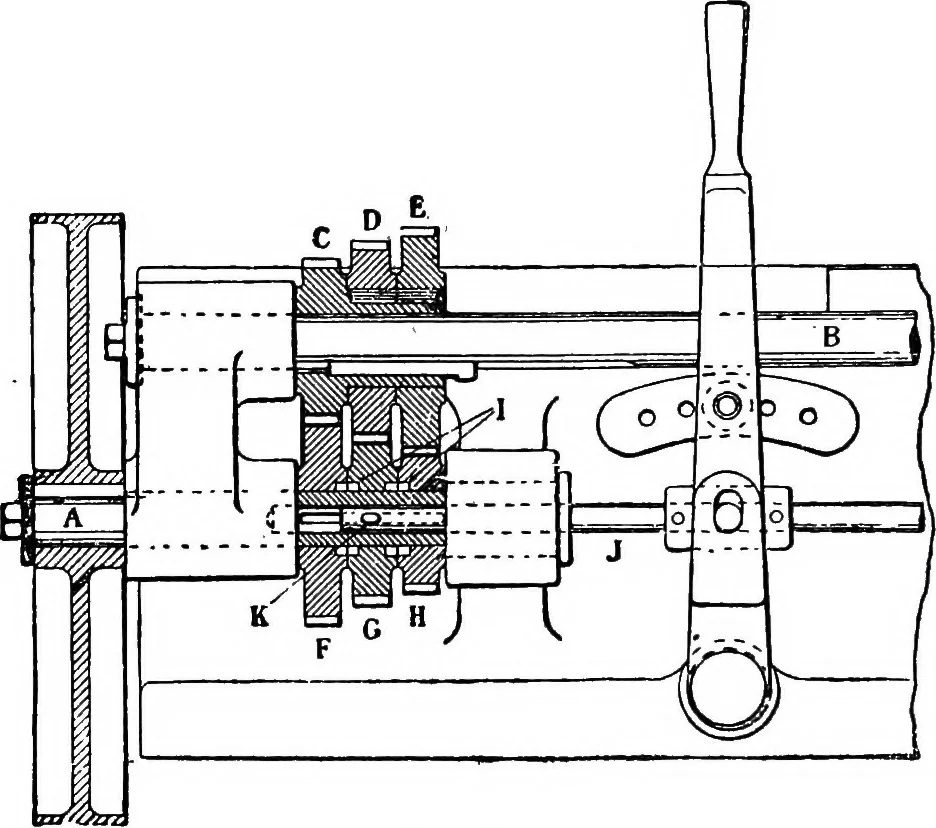

, Imt. Mech.Engineers, part ii., 1901. 02 MECHANISM. three wheels are keyed to B. The spindle A is bored and slottedto receive a rod, J, armed with a crosspiece, which acts as a slidingkey, K. The handle is used to slide the rod with the key K, itsposition determining which of the pairs of wheels… … Fig. 71. pinholes fix the handle in the proper position. In this arrangementit will be noticed that each pair of wheels is always in gear. § 54. Sliding Jaw-clutches.—A very ingenious speed change gear^for motor-car work is illustrated in Fig. 72. As in the gear justdescribed, the gear wheels are…
