Advanced theory of electricity and magnetism; A text-book for colleges and technical schools (1915)
Franklin, William S. (William Suddards), 1863-1930, MacNutt, Barry, 1878-1936. joint author · New York, Macmillan · leaf 192

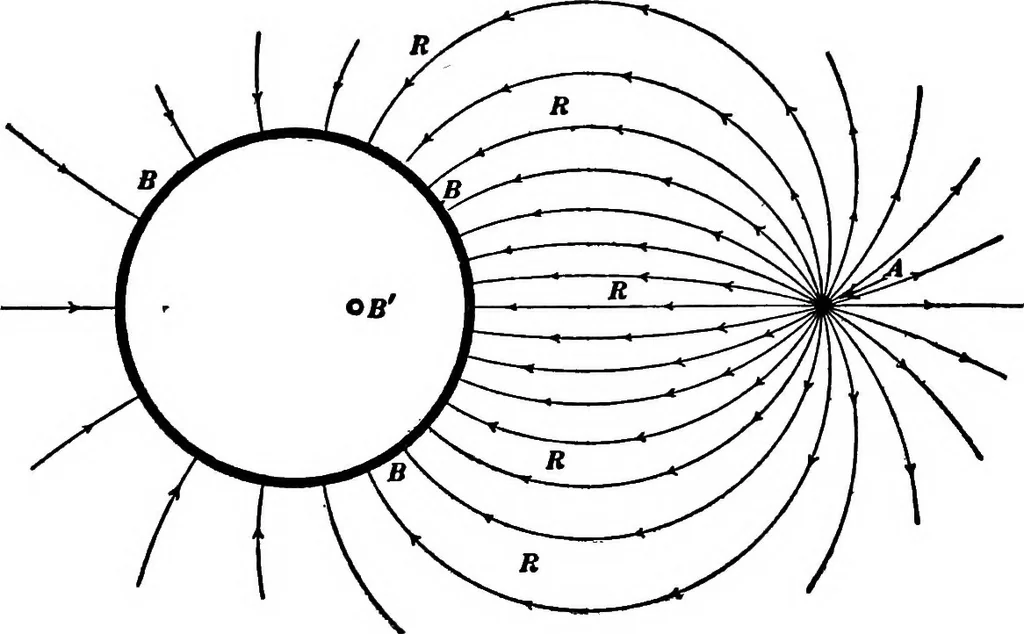

Fig. 121. method of electrical images. The origin of this term may be illus-trated by discussing Fig. 122. A line charge A near and parallelto a metal cylinder BB having an equal and opposite amount of … Fig. 122. charge per unit length gives in the region RRR an electric fielddistribution which is exactly the same as would be produced by Aand an equal and opposite line charge at B with the metal cylinderremoved. Therefore one may think of the field RRR as being 182 ADVANCED ELECTRICITY AND…
Electricity · Magnetism
