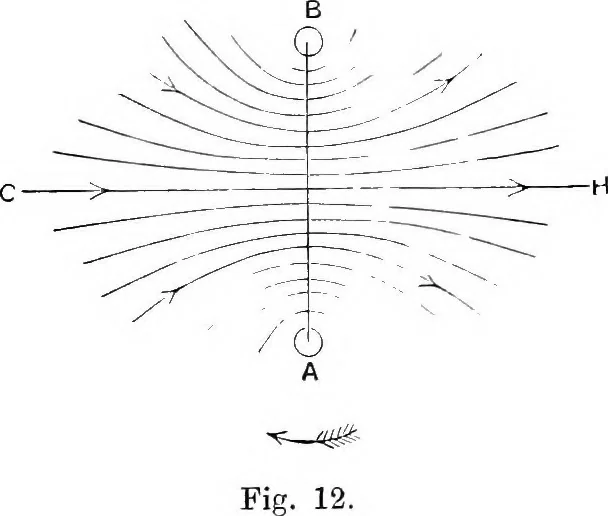

of place. Divergence of the lines of flow and the radiometer. 120. We may readily obtain a graphic representation of the resultsexpressed by equations (124) and (140). Let AB, fig. 12, be a plate from which heat is being communicated tothe surrounding gas. Then the lines representing the flow of… … Fig. 12 shows what the lines would be if AB were hot on one side andcold on the other, the gas being at the mean temperature and of unlimitedextent. (2) The distribution of temperature on an opposite surface, or containingvessel, will also affect the shape of the lines of flow. Fig. 13 shows the…
