Advanced theory of electricity and magnetism; A text-book for colleges and technical schools (1915)
Franklin, William S. (William Suddards), 1863-1930, MacNutt, Barry, 1878-1936. joint author · New York, Macmillan · leaf 201

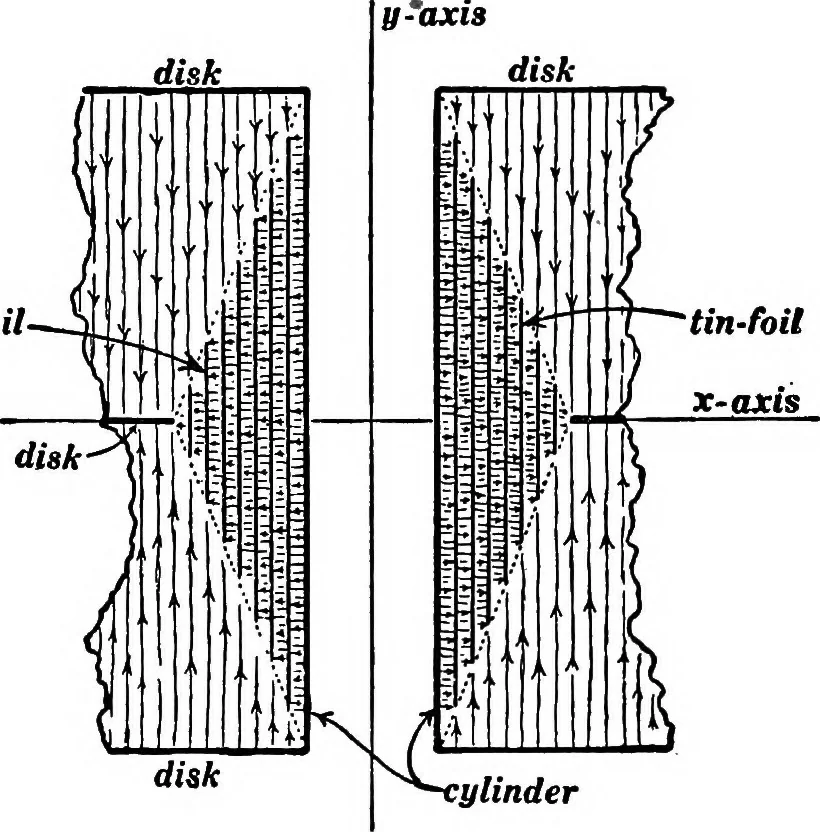

type of insulating bushing again con-sidered.—The radial electric field surrounding a line chargedecreases in intensity at increasing distances from the line charge,and to produce a radial field of constant intensity in a homogene-ous dielectric free charge would have to be distributed in a… … Fig. 130. foil sheets. A sectional view of such a bushing is shown in Fig.129. The theoretically correct shape of the curve cc in Fig.129 is an equilateral hyperbola, because the successive tinfoilcylinders must have the same area, as explained in Art. 89. No attempt is made to show the lines of…
Electricity · Magnetism
