Lodge, Oliver, Sir, 1851-1940 · London, New York, Macmillan and co. · leaf 208

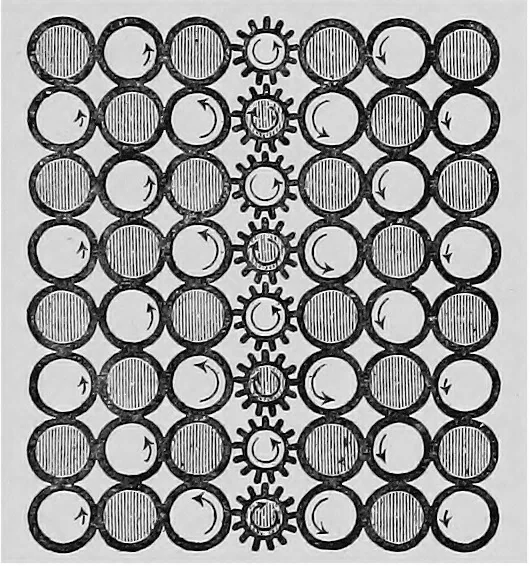

eloop: so the outside region is somewhat affectedby rotation, but of a kind opposite to that inside. loi. Figs. 38 and 41 show the state of things for a CHAP. X.J MODELS OF MAGNETIC FIELD. 189 closed circuit conveying a current. The free space inFig. 38 represents a perfect conductor, or perfect… … Fig. 40.—Diagram nf a direct and return current close together, showing distributionof rotation and of slip in the thickness of the conductor, and in the dielectricbetween. The dielectric outside is very little disturbed. The smooth wheelsrepresent a metallic conductor, the cog wheels represent a…
Electricity
