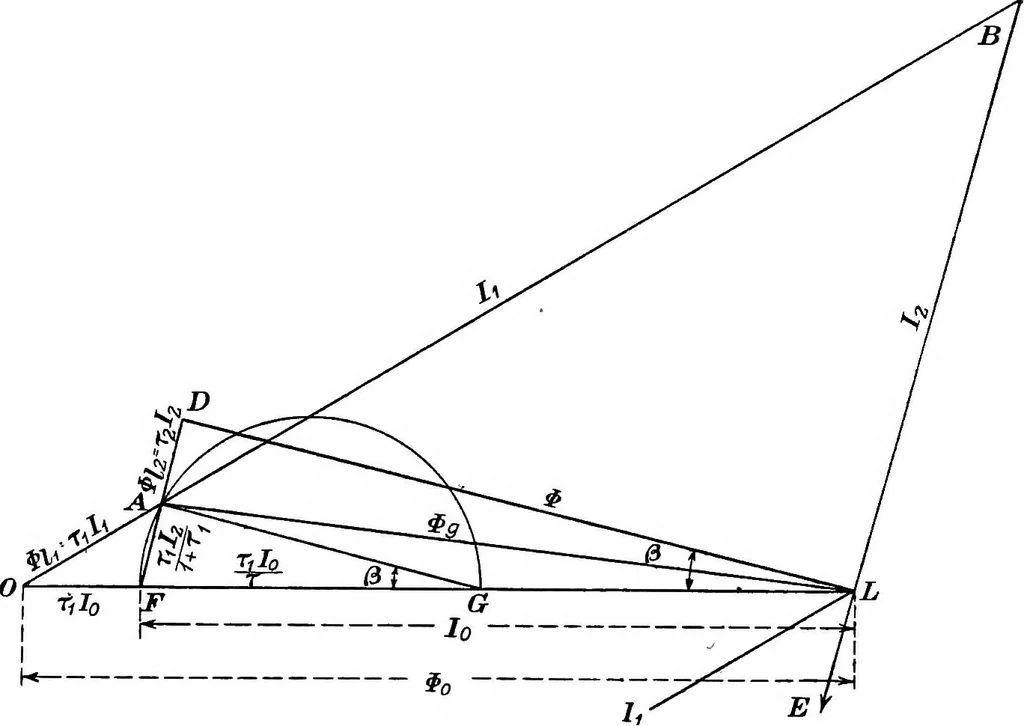

akage flux ^i^, which links the stator-winding withoutcrossing the air-gap, is in phase with the primary current, and is representedby the line ^ 0 in continuation of the line BA. The total flux $q in the statoris represented by LO. With a constant terminal pressure, and con-sequently, on our… … Fig. 404Then, from the law of the magnetic circuit, we have AO = $;, = c. Ii c - p . Ti . /j = Tj . /j. D^ = O,, = ^ = ^. T2 . /a = T2 . /a Rr. R- It is to be noted that we have so chosen the scale of current in Fig. 404,that the same length, viz. AL, represents both Ig and O,, which, since c I c…
