Reeve, Sidney A. (Sidney Armor), 1866-1941 · New York, London, The Macmillan Company · leaf 144

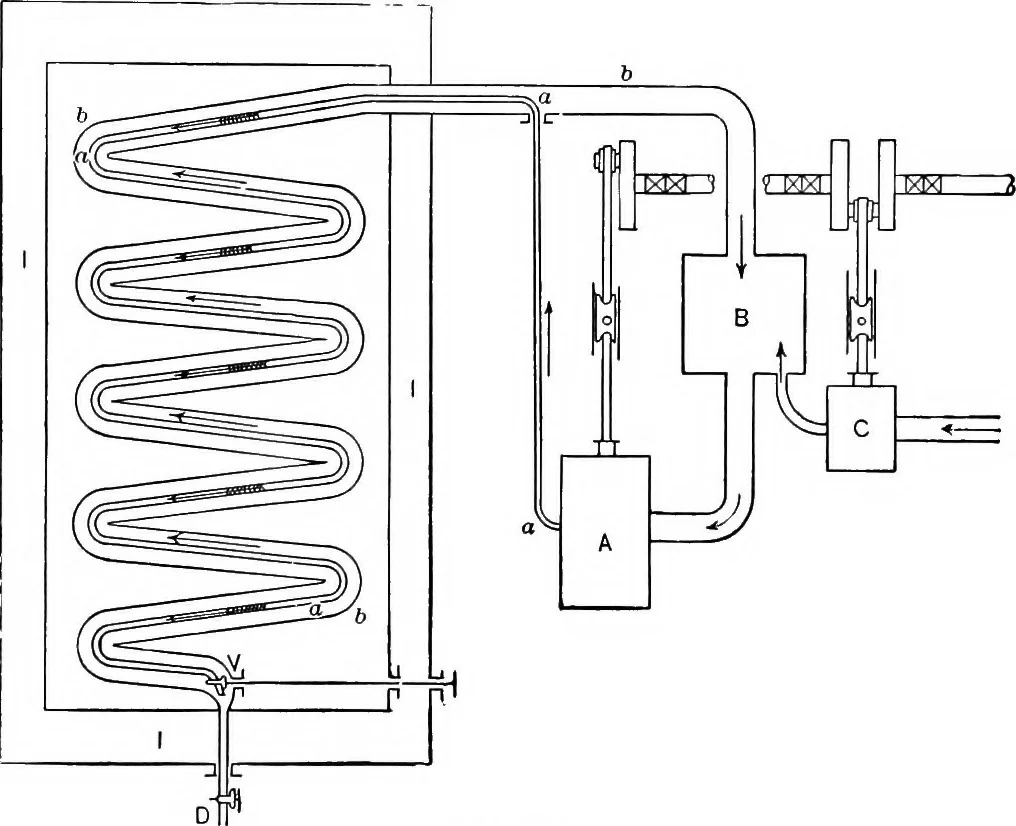

ipe bbb. The two together THE LAWS OF THE PERMANENT GASES 127 are formed into a coil presenting a large amount of sur-face and leading to an end at V. The coil is encased onall sides with thermal insulation III, which is constructedwith great care. At the terminus of the pipe aaa. is avalve V… … fig. 17 The thermal activity of the apparatus illustrated inFig. 17 may now be traced by means of Fig. 16. The compressor C supplies air at atmospheric tempera-ture to the reservoir B at the same temperature. Thecompressor A supplies air to the pipe aaa at the higherpressure AAA, but still at…
Thermodynamics · Heat-engines
