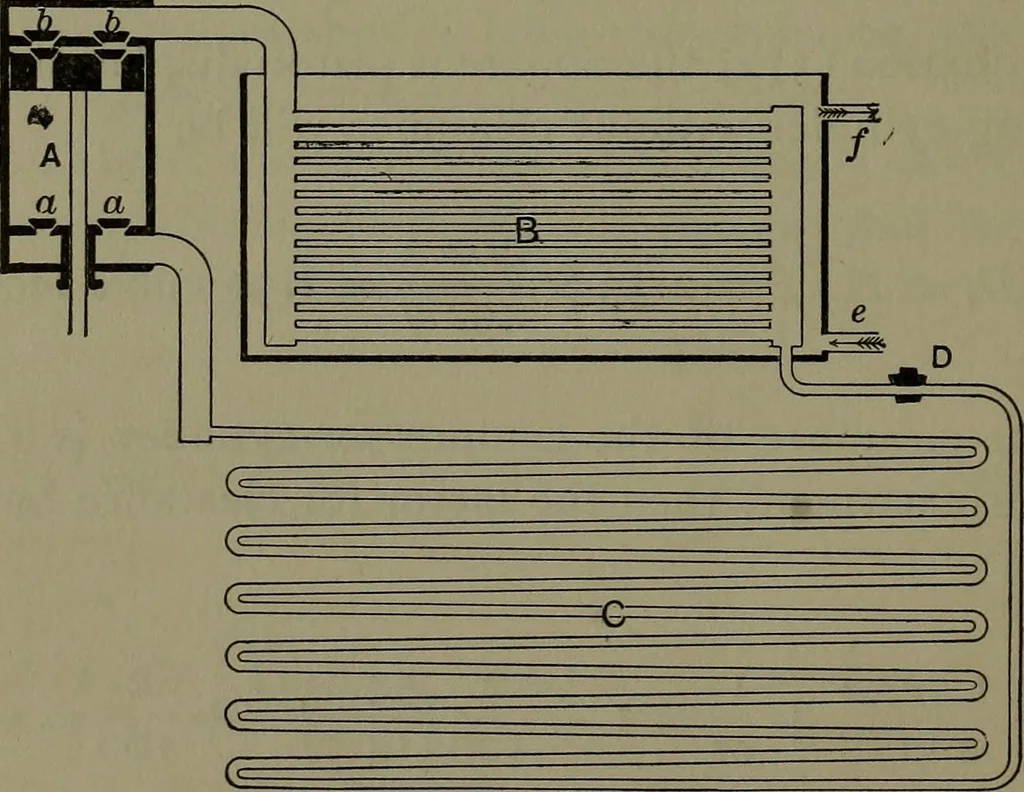

he com-pressor-cylinder 15^ inches, and diameter of the expanding-cylinder 14 inches. Compression Refrigerating-machine.—The arrangementof a refrigerating-machine using a volatile liquid and its vaporis shown by Fig. 95. The essential parts are the compressorA, the condenser £, the valve D, and the… … Fig. 95. and leaves at f. The vapor is condensed, and the resultingliquid gathers in a reservoir in the bottom, from whence it is REFRIGERA TING-MA CHINES. 49 r led by a small pipe having a regulating-valve D to the vapor-izer or refrigerator. The refrigerator is also made up of coilsof pipe, in…
