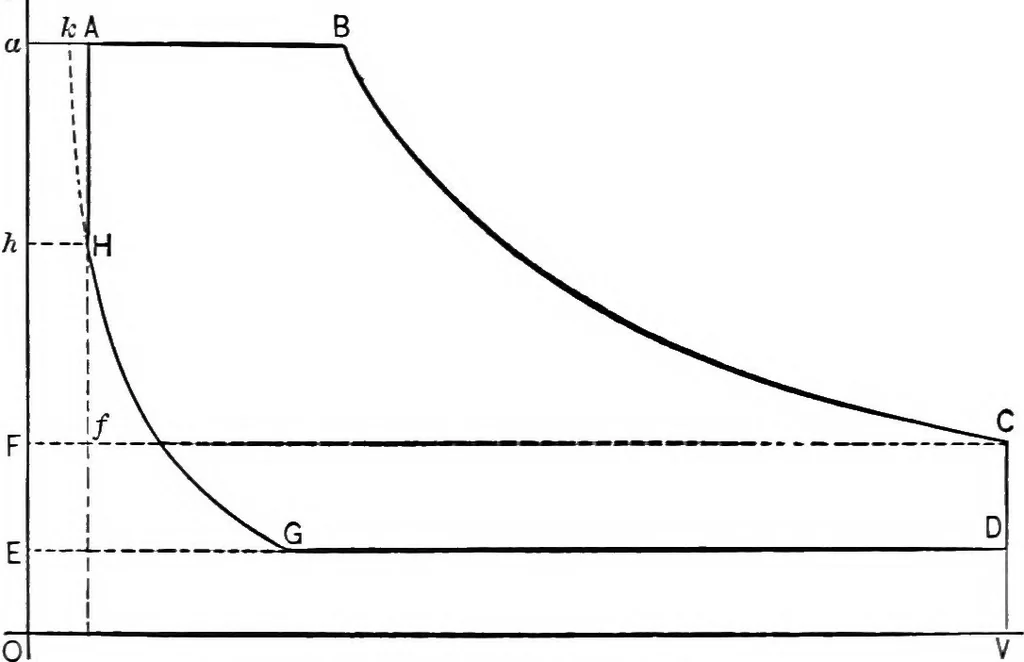

e the designers judgment that this clearance should befilled with steam of two-thirds boiler-pressure at the com-pletion of compression. The situation is shown in Fig. 38. For the moment call the volume of the cylindrus, or/C, 196 THE THERMODYNAMICS OF HEAT-EXGIXES equal to unity. Then Ff= 0.02 and… … Fig. 38 equal to 1.02 x 6300/6= 6426/C. The area hHGE mustbe equal to PHVBloge(Pa -j- PB) = (~ 114-5 x 144J 0.02 fC log, (| x ^^-J = 343 fC. The area aAHh = \ x 114.5 x 144 x 0.02 fC = no fC.Therefore the area ABCDGHA = (6426 — 343 — no)/C= 5973 fC. Therefore, by the premises of the problem,5973…
