A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 321

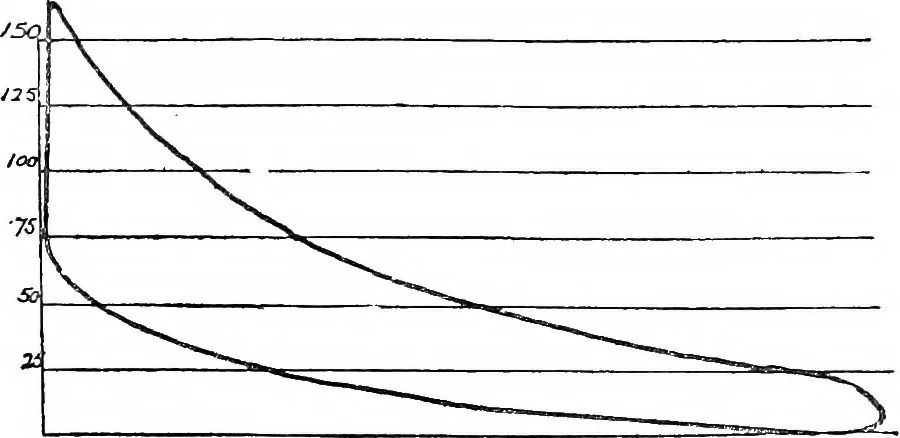

310 CEOSSLEY OIL ENGINE. Fig. 145 is an indicator diagram taken when the enginewas running at 251 revolutions per minute, and the B.H.P.being 55. The above trials were made with a good commercialengine ; one of two that happened to be going throughthe testing department at the time. It was not… … but opens communication to the cylinder during the out-stroke of the piston. The governor acts upon this valve bya hit-and-miss arrangement, so that as the speed of theengine rises the valve is not opened. During the outstrokeof the piston air follows through a separate automatic valve,held upon…
Internal combustion engines
