A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 125

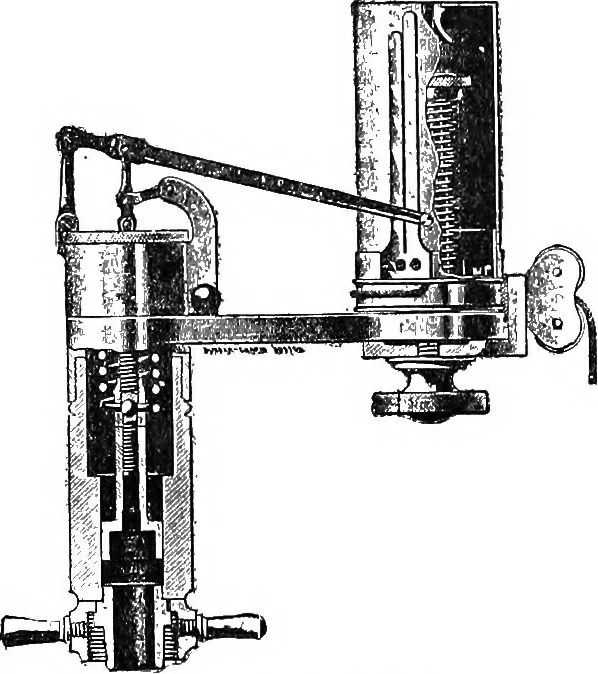

being both durable and accurate at highspeeds. The heavy stresses brought to bear upon theworking parts of the instrument when used for gas-engineindicating has led to modifications in design, rendering itin every way more adat)table to gas-engine work. Themost obvious alteration is the adoption of… … Fig. 74.—Crosby Indicator. it can be used with equal efficiency upon a steam-enginecylinder. It will be observed that the barrel of theindicator is bored out to two diameters, the larger part INDICATOES FOE GAS ENGINES. 1]5 having an area equal to twice that of the smaller. Twopistons are supplied,…
Internal combustion engines
