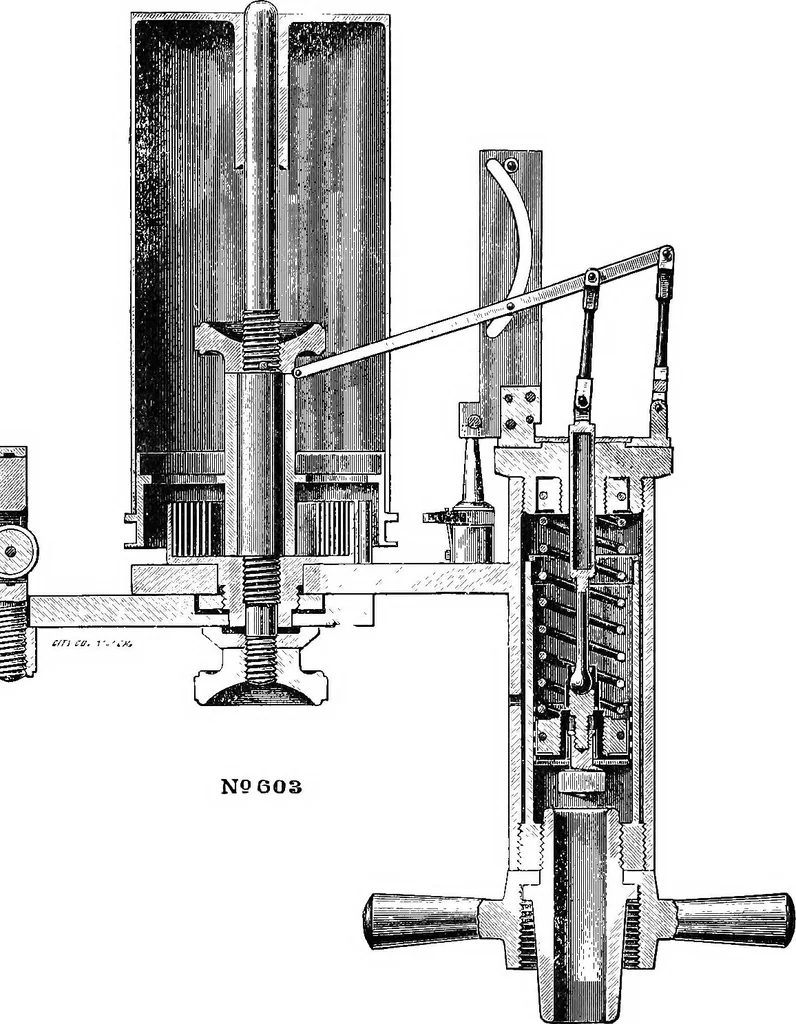

self to theeconomist. In both designs the working cylinder is jacketed,to enable it to expand readily with the piston, and soobviate undue friction. All the piston springs are doublespiral, to prevent the slight rotation and tilting of thepiston-which is inevitable with a single spiral. A verylight… … Via, 76.—Section o£ Tabor Indicator, INDICATORS FOE GAS ENGINES. 117 The general construction of the indicators will be gatheredfrom the illustrations. THE TABOE INDICATOE. The Tabor indicator is shown in fig. 76. Its three mostcharacteristic features are the straight-line motion, theworking ■…
