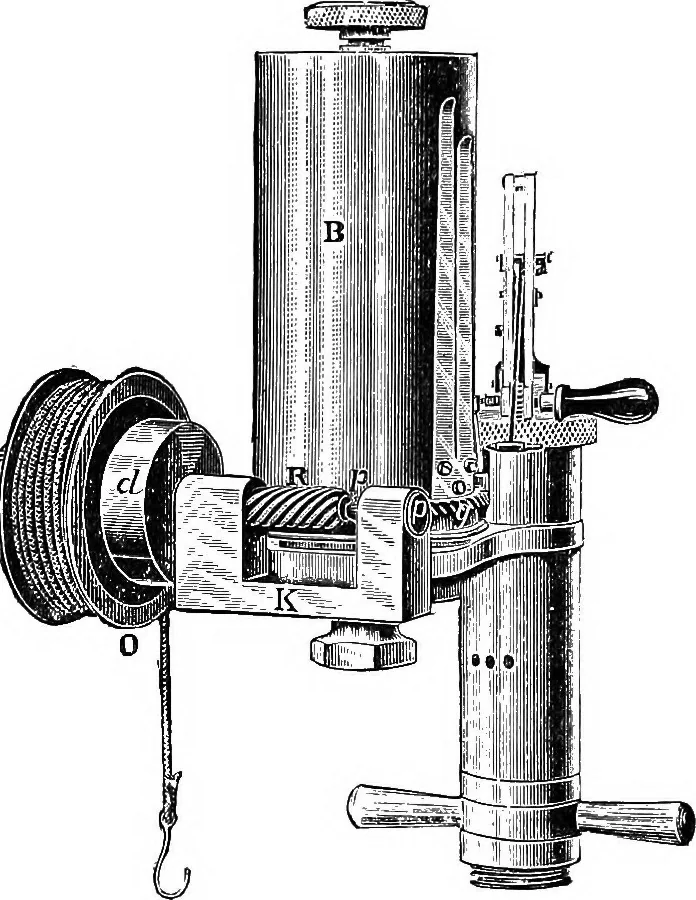

le. The drum B then remains stationary. This gearis very convenient for indicating at high speeds; but it isobvious that the speed of the engine must be considerablyreduced to enable the hook from the indicator pulley to beattached to the crosshead. The only automatic gear for attaching and… … Fig. 77—Tabor Indicator witli Reducing Gear. indicator gear to any high-speed engine whilst running atfull speed Another important feature is that the reducingmotion is thrown out of action immediately after thediagram has been taken. THE WAYNE INDICATOR. The design of this instrument, which is…
