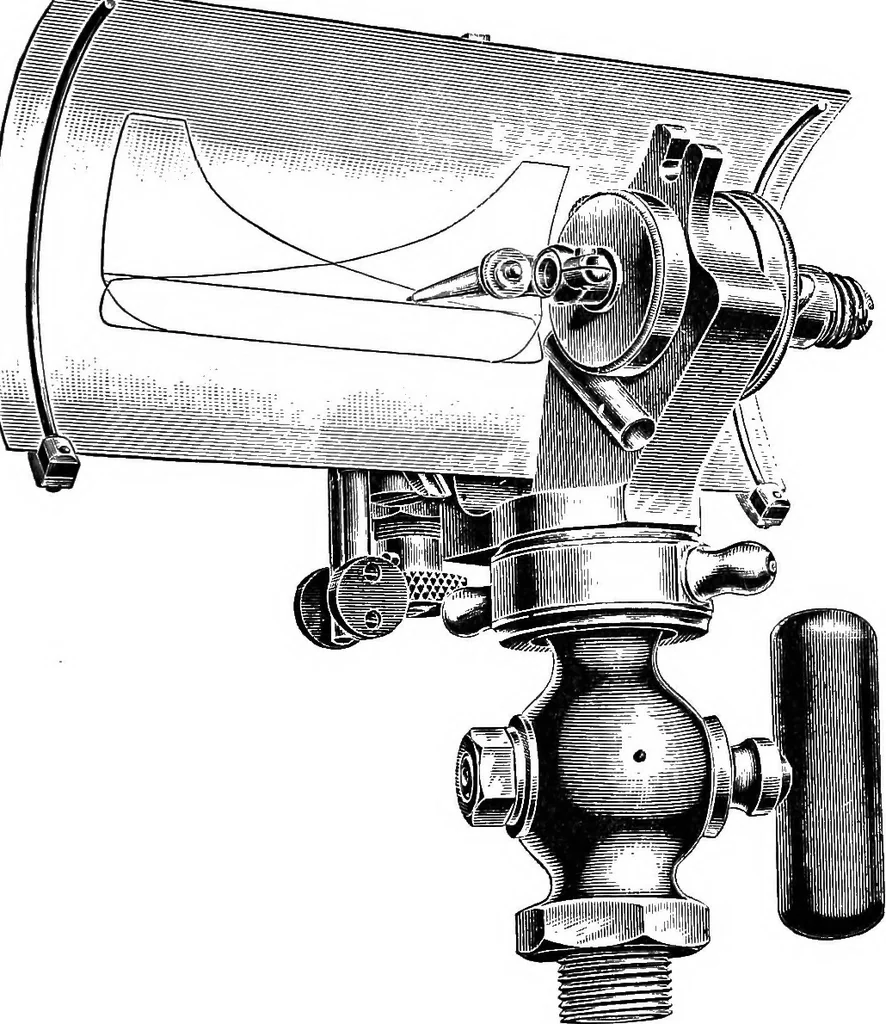

important feature is that the reducingmotion is thrown out of action immediately after thediagram has been taken. THE WAYNE INDICATOR. The design of this instrument, which is made by Messrs.Elliott Brothers, is a complete departure from the usuallines. Two views are shown in figs. 78 and79j from… … Pio. 78 Wayne Indicator. concave surface. The latter moves horizontally by meansof a cord passing over a spring pulley and attached to anyconvenie-nt reducing gear. The marking point traverses 120 INDICATOES FOR GAS ENGINES.
