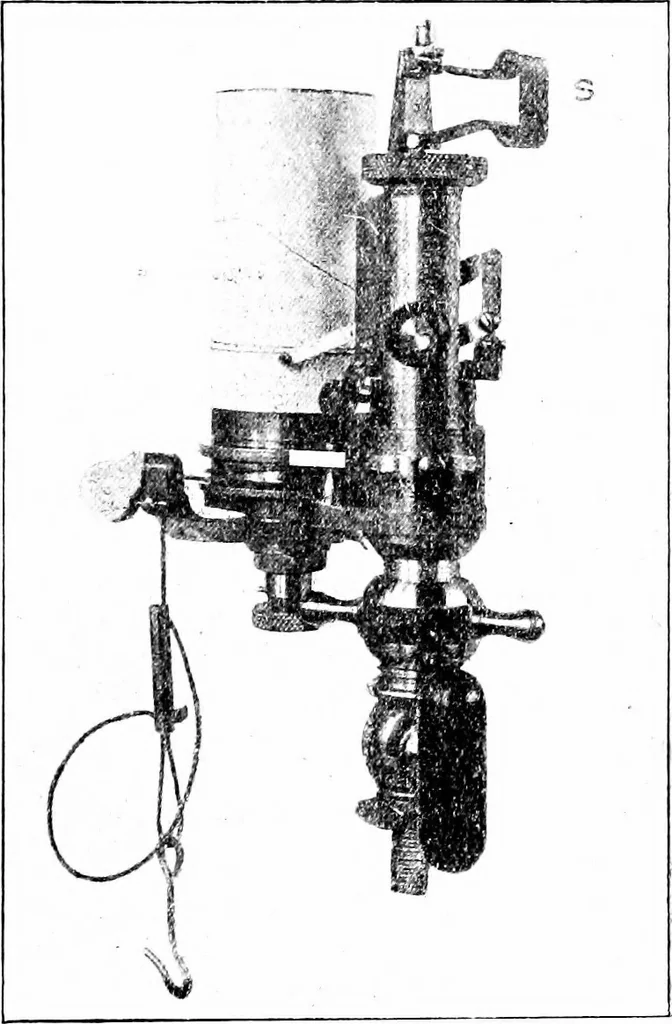

taken witli Wayne Indicator. noticeable that a weaker spring may be used with theline attachment; at the same time a much more accuratediagram is produced. The author has found the liningattachment extremely efl&cient and simple to work. It maybe attached or removed from the instrument in a few… … Jrii;. 82.—Simplux IiidiLatui. increase the degree of accuracy obtained. For conveniencein adjusting the instrument it is attached to the cock witha swivel joint. 124 REDUCING GEAR FOE GAS ENGINES. THE SIMPLEX INDICATOR. A photograph of this instrument is shown in fig. 82. Theinstrument is made by…
