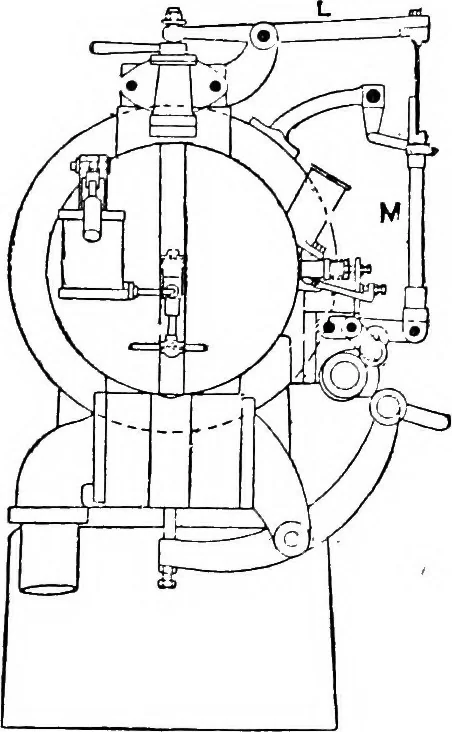

S5 «m apa« o S5 o < la p 315 O TYPES OF GAS EKGIXES. Uj stroke the air already compressed by the larger piston Dexpands, and gives back to the engine the energy stored init by compression. At the end of the ontstroke the exhaustvalve opens, and releases the pressure in the combustionchamber. It… … Fia. 44.- End View of Premier Gfia Engine. air and drive it through the combustion chamber into theuxhaust pipe. This effectually clears the combustionchamber of its burnt products, and this done, the exhaustcloses, and the cycle is repeated. The indicator diagramshown in fig. 45 has been taken…
