Higbee, F. G · New York, John Wiley & Sons · leaf 191

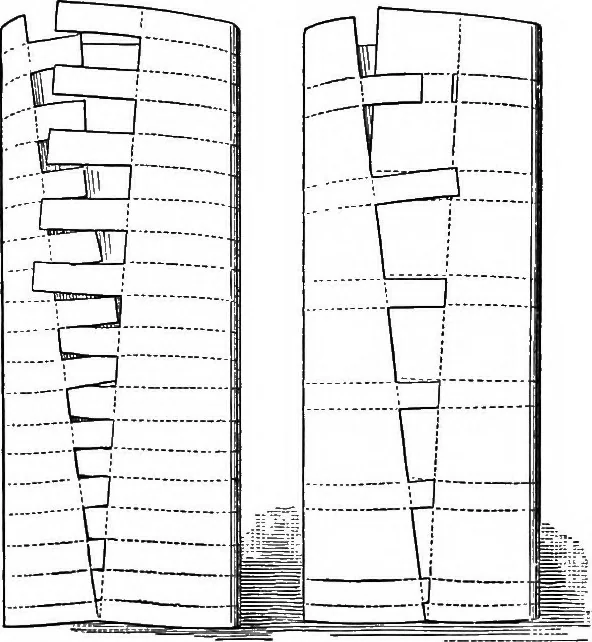

ustrate many of the practicalconsiderations which must be kept in mind when laying outsheet metal work. 144. Practical Hints. In making paper models such as theone shown in Fig. 143 a good grade of detail paper will give satis-factory results. After the developments of the several surfaceshave been… … Fig. 144. — Illustration showing two methods of making joints in paper modelmaking. The method at the right gives better results for joints along straightlines while the one at the left is better for curved joints.
Geometry, Descriptive
