Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 125

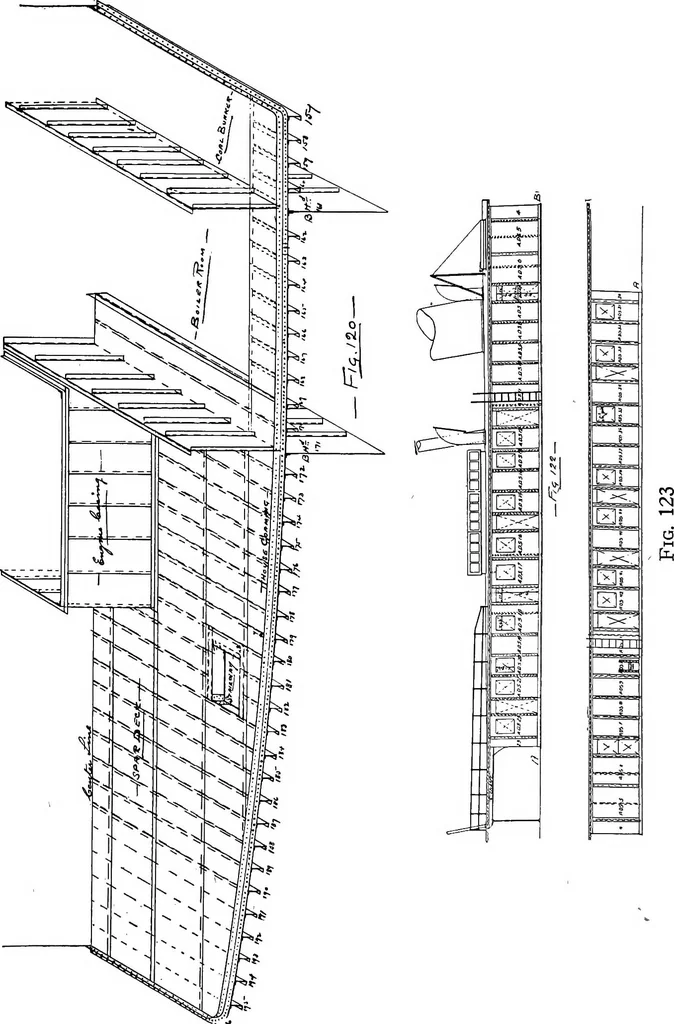

114 LAKE SHIP YARD METHODS OF … STEEL SHIP CONSTRUCTION 1,15 One mold is all that is necessary for marking all the pilasters. Thepilasters are usually left one-eighth of an inch long top and bottomand the flange of the angles chipped to remove the slightly bevelededge on the flange of the angle. Fig. 123, shows the port-side of…
Naval architecture · Ships, Iron and steel
