Higbee, F. G · New York, John Wiley & Sons · leaf 31

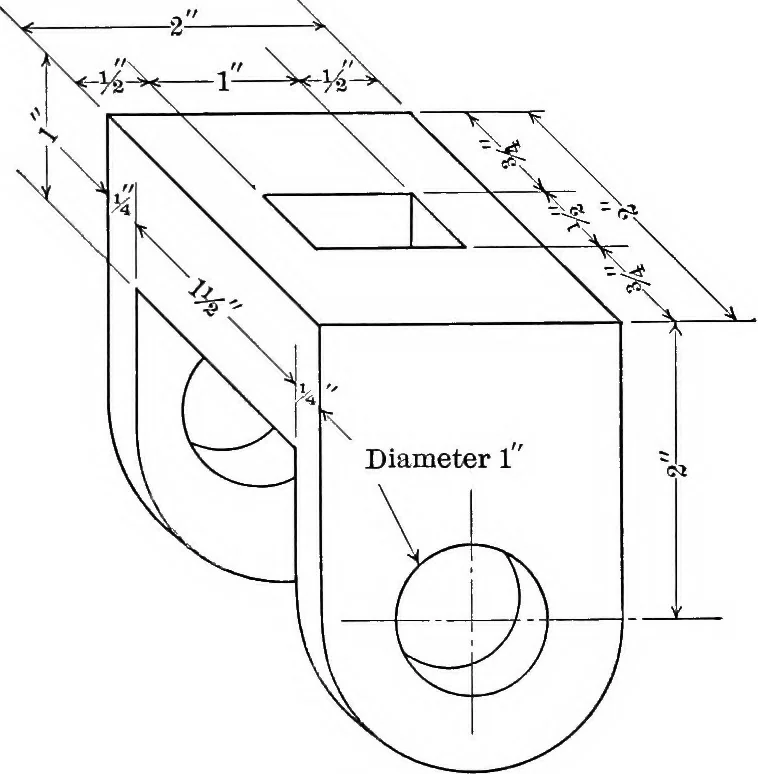

Fig. 23. … Fig. 24. 21. Draw three views of the object shown in Fig. 21. 22. Draw a plan, elevation, and left end view of the object shown inFig. 22. 23. Draw the plan, elevation, and right end view of the object shown inFig. 23. 24. Draw a plan, elevation, and both end views of the object shown inFig. 24.…
Geometry, Descriptive
