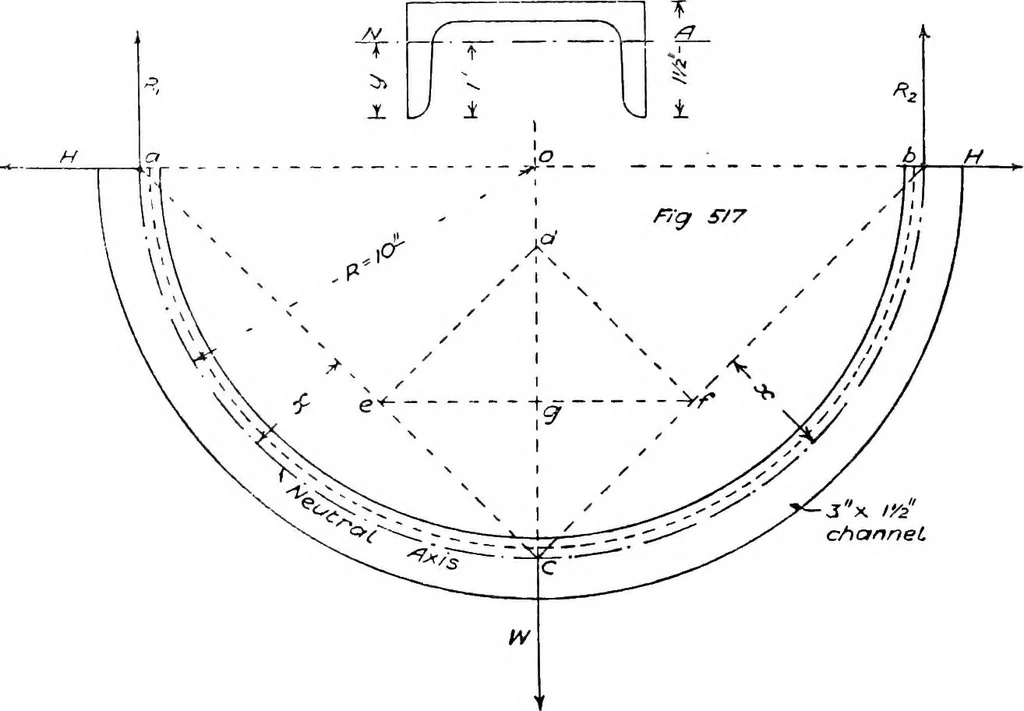

7 > instead of W will be used the diagonal pull which in a semicircular bar will be 07W, and _ 0-7W , 0-7Wa; „„ 0-7W , 0-7W X 3 128or 28 = 0-46W + 8-4W = 8-86W, whence W = gTgg = 3-16 tons. This 184 THE MECHANICS OF BUILDING CONSTRUCTION can be stated in another form which, however, does not… … b ^ ^- r^ T and let dc = weight W. From d draw de and df parallel to Ic and ac.Join ef, cutting cd in g. Then the vertical reactions EiBg = dg and eg ■= —. The horizontal tension E. = eg anAfg = -^ for semicircular beam. The diagonal force tending to straightencurved beam = e/andice. Now take the…
