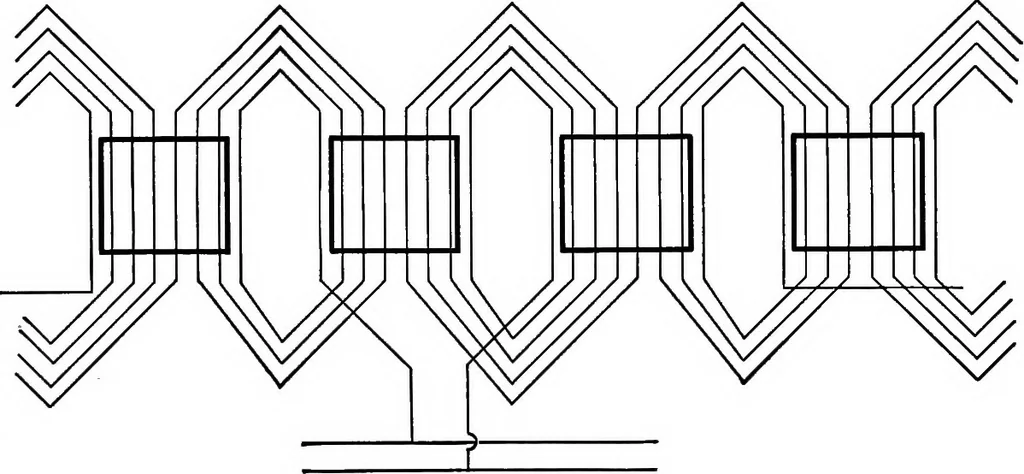

MS Fig. 26 represents the development of a 4 pole single phasewinding with 32 conductors in a single circuit. Fig. 27 represents the development of a 4 pole 2 phase wind-ing with 24 conductors per phase, the 2 circuits being entirely-independent. Fig. 28 represents the development of a 4 pole 3… … Fig. 26 21. Draw the development and end view of the winding foran 8 pole 2 phase armature with 32 conductors per phase. 22. Draw the development and end. view of the winding ofa 6 pole 3 phase armature with 24 conductors per phase, thephases being connected in star grouping. 23. Connect the…
