Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 177

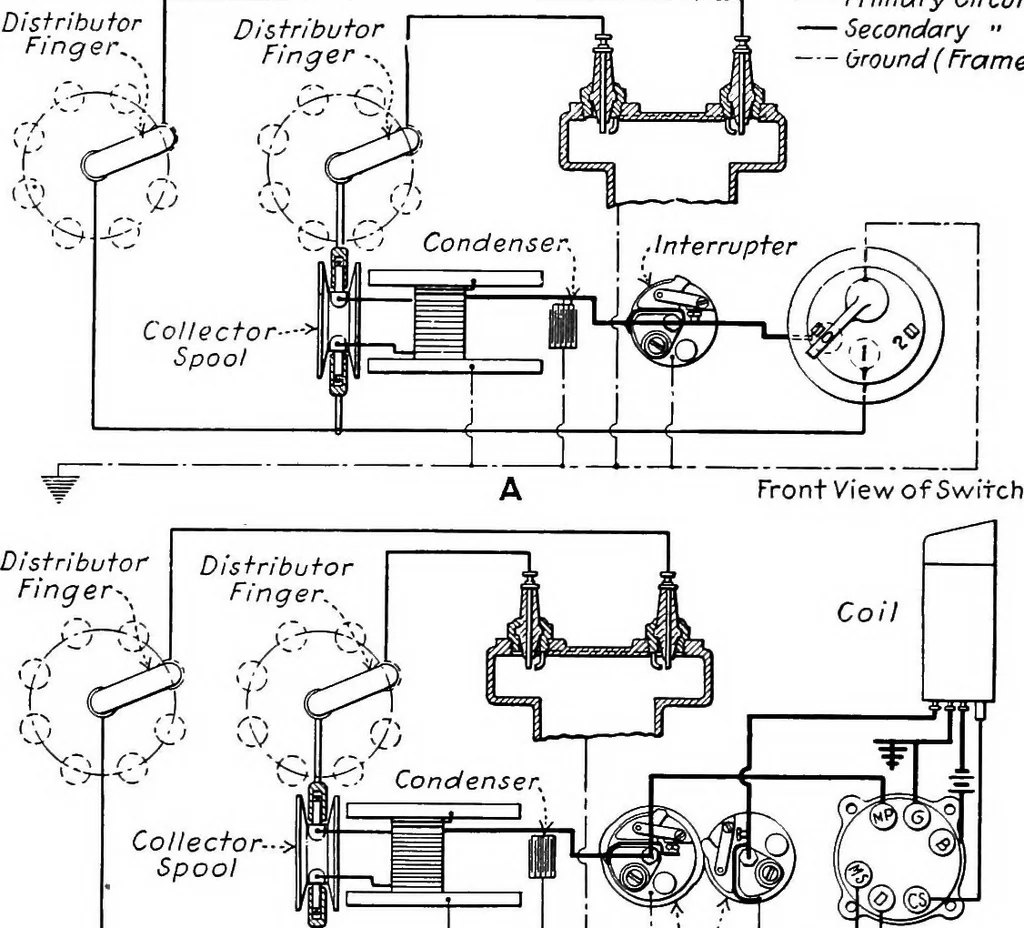

ig. 64, A shows diagrammatically the circuit of theD type two-spark independent magneto and the switchused with it. In position OFF the primary winding 176 Aviation Engines of the magneto is short-circuited and in this positionthe switch serves as an ordinary cut-out or groundingswitch. In position… … Magneto Interrupter -Battery TimerB I Back Viewof Swi+ch Fig. 64.—Wiring Diagrams of Berling Magneto Ignition Systems. secondary winding is grounded to the body of the motor.This is the starting position. In this position of theswitch the entire voltage generated in the magneto isconcentrated at…
