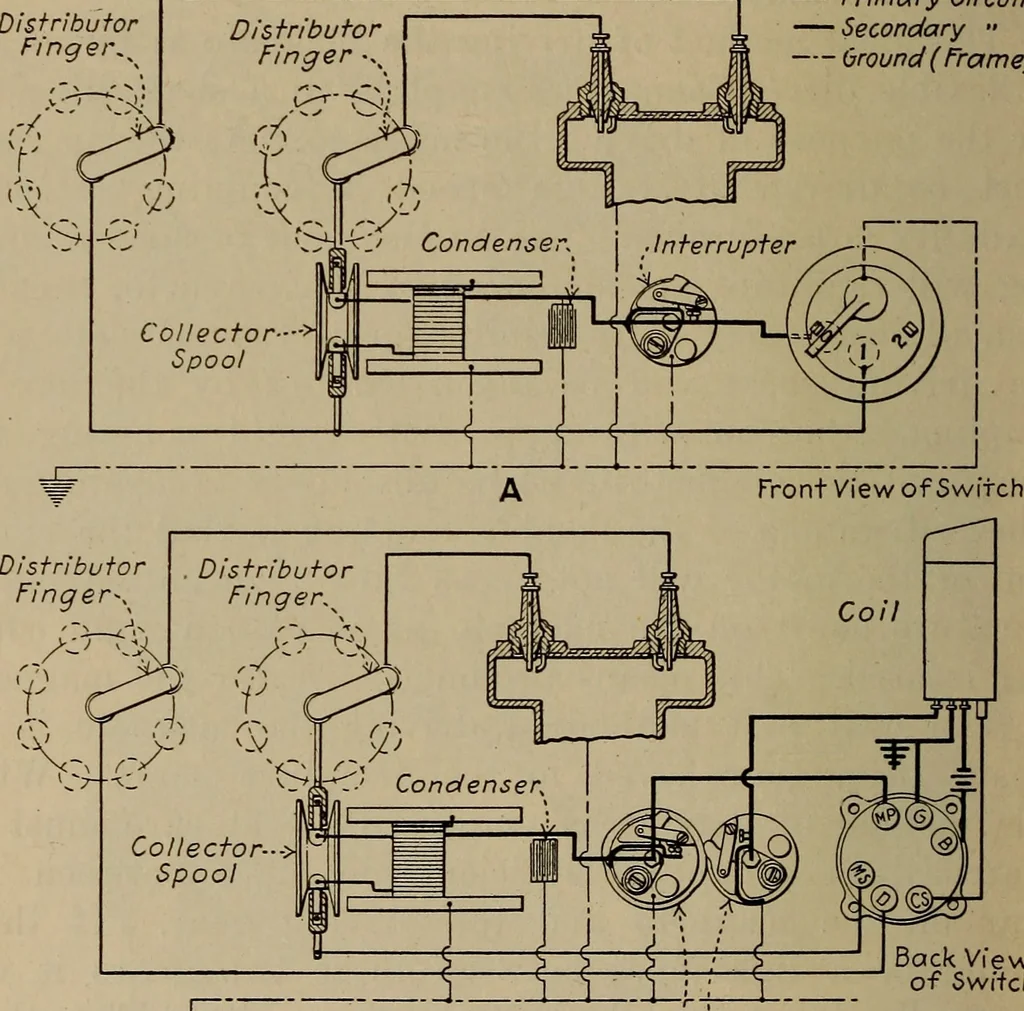

mmatically the circuit of theD type two-spark independent magneto and the switchused with it. In position OFF the primary winding 176 Aviation Engines of the magneto is short-circuited and in this positionthe switch serves as an ordinary cut-ont or groundingswitch. In position 1 the switch connects… … Back Viewof Swrfch Magneto Interrupter Battery TimerB Fig. 64.—Wiring Diagrams of Berling Magneto Ignition Systems. secondary winding is grounded to the body of the motor.This is the starting position. In this position of theswitch the entire voltage generated in the magneto isconcentrated at one…
