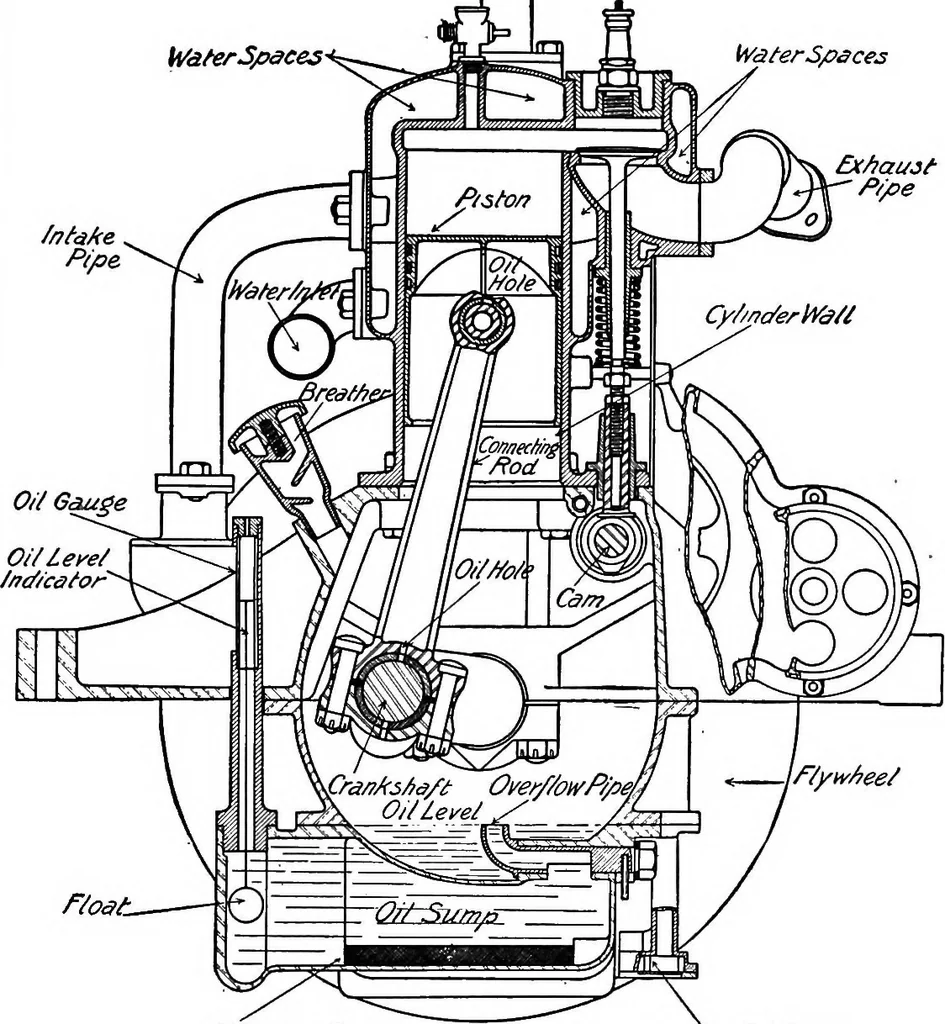

ble leads instead of depending solely upon the distrib-uting action of scoops on the connecting rod big ends.A system of this nature is shown at Fig. 77. The oil Best Oiling System for Airplane 217 is carried in the crank-case, as is common practice, butthe normal oil level is below the point where… … Ff/ter/ng ScreenOi/Out/et 6earidO/tPump Fig. 78.—Sectional View of Typical Motor Showing Parts Needing Lubri-cation and Method of Applying Oil by Constant Level Splash System.Note also Water Jacket and Spaces for Water Circulation. 218 Aviation Engines journals. After the oil has been used on these…
