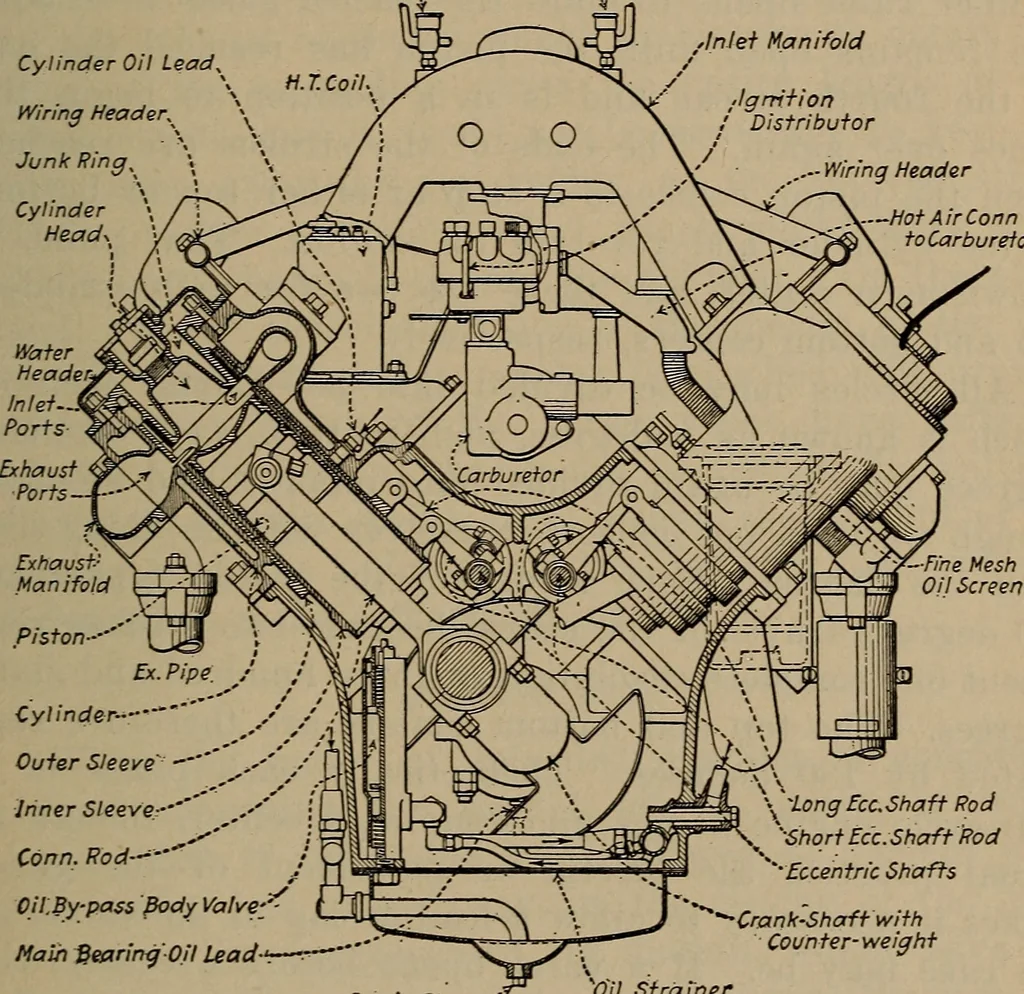

see the same formula in different motors. It is truethat the same timing could not be used with motors of Valve-Timing Practice 267 different construction, as there are many factors whichdetermine the amount of lead to be given to the valves.The most important of these is the relative size of… … Piston-- Ex. Pipe. / Cylinder- Outer Sleeve^ - .- Inner Sleeve- SConn. Rod-~Oil. By-pass Body ValveMath Bearing Oil Lead- \-Long EccShaft RodShort EccShaftRod Eccentric Shafts Crank-Shaft withCounter-weight J)rain Plug-- Oil Strainer >.6.h»*st»o»< Fig. 107.—Cross Sectional View of Knight Type…
