Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 290

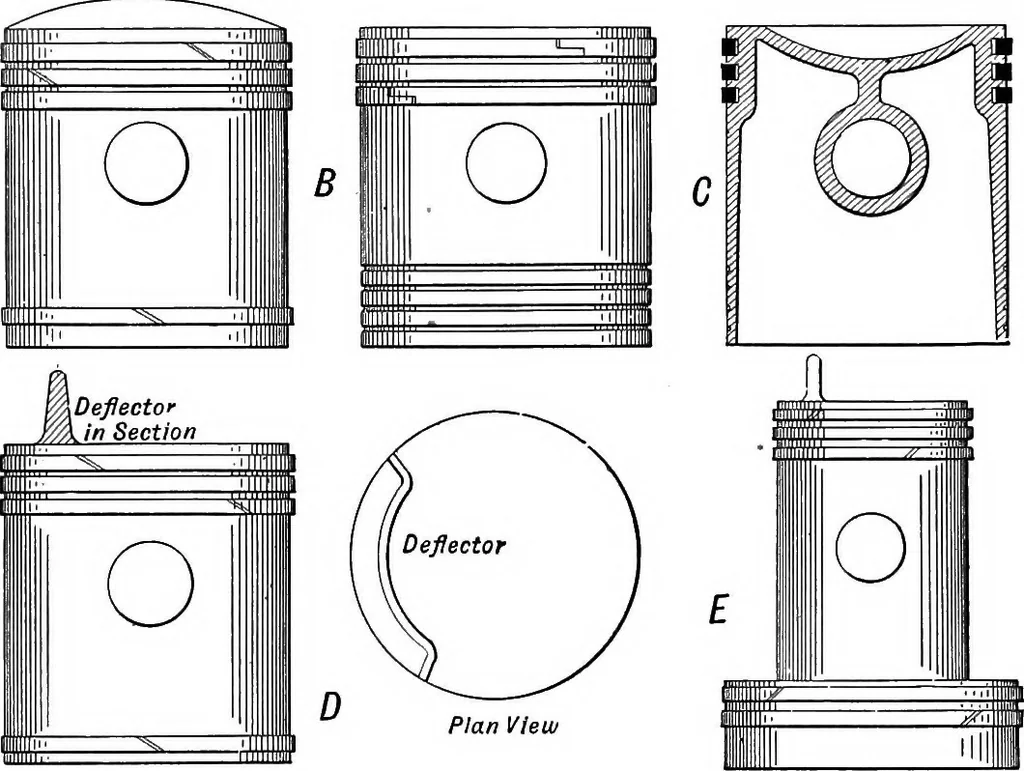

ion than would be possible witha flat top piston. This construction is also stronger be-cause of the arched piston top. The most common form Constructional Details of Pistons 289 of piston is that shown at B, and it differs from thatpreviously described only in that it has a flat top. Thepiston… … Side View Fig. 116.—Forms of Pistons Commonly Employed in Gasoline Engines.A—Dome Head Piston and Three Packing Rings. B—Flat Top FormAlmost Universally Used. C—Concave Piston Utilized in KnightMotors and Some Having Overhead Valves. D—Two-Cycle EngineMember with Deflector Plate Cast Integrally.…
