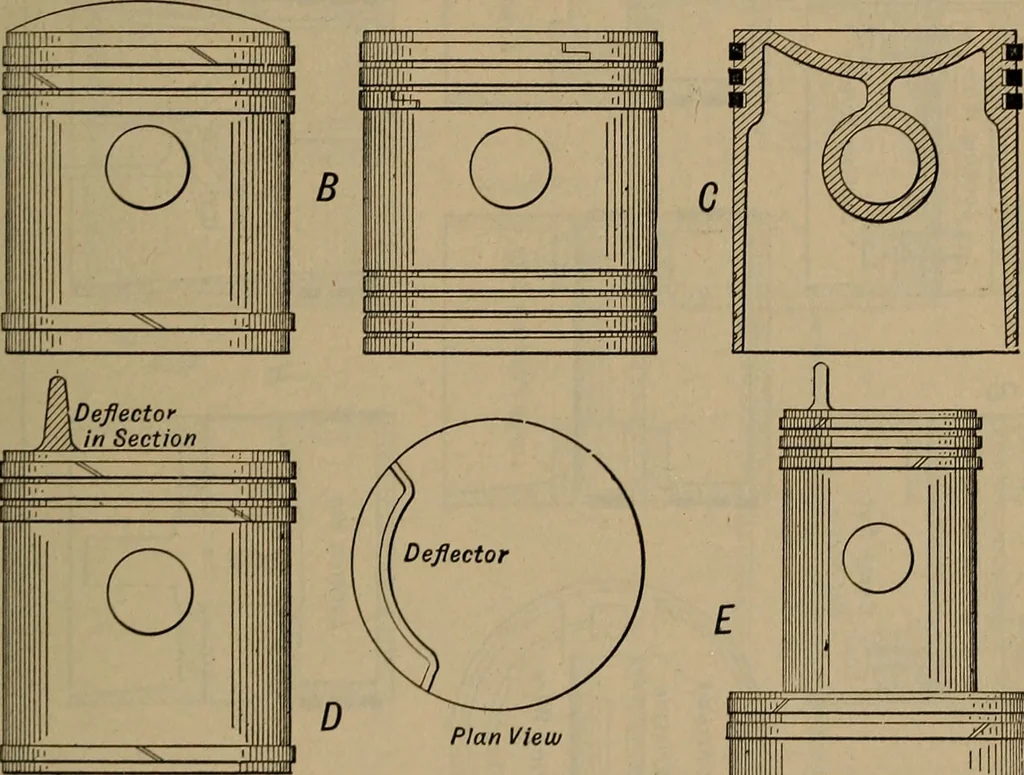

than would be possible witha flat top piston. This construction is also stronger be-cause of the arched piston top. The most common form 288 Constructional Details of Pistons 289 of piston is that shown at B, and it differs from thatpreviously described only in that it has a flat top. Thepiston… … \ o II ■ii nil Side View Fig. 116.—Forms of Pistons Commonly Employed in Gasoline Engines.A—Dome Head Piston and Three Packing Rings. B—Flat Top FormAlmost Universally Used. C—Concave Piston Utilized in KnightMotors and Some Having Overhead Valves. D—Two-Cycle EngineMember with Deflector Plate Cast…
