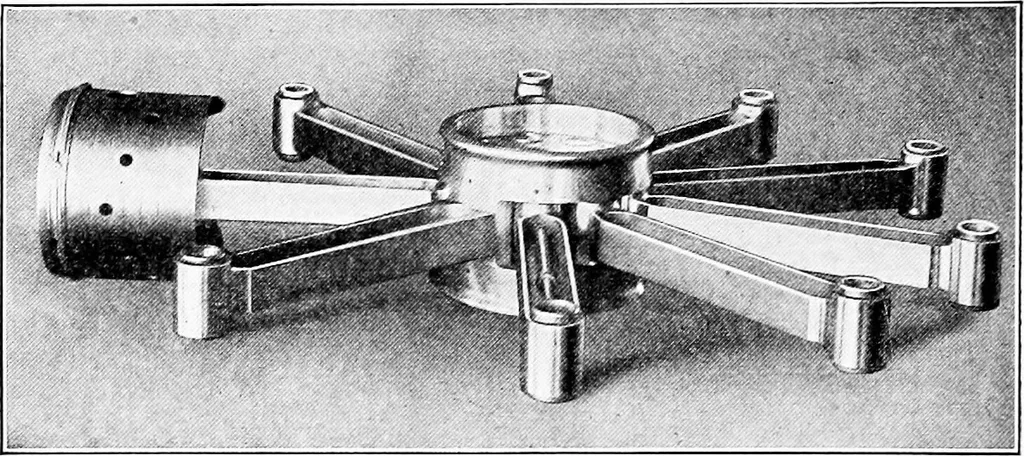

t in place. Thescrew is kept from turning or loosening by means of acheck nut. The method outlined at B is similar to thatshown at A, except that the wrist pin is solid and thepoint of the set screw engages an annular groove turnedin the pin for its reception. A very positive method isshown at C.… … Fig. 121.—Cast Iron Piston of Monosoupape Gnome Engine InstalledOn One of the Short Connecting Rods. from that shown at C only in that the locking wire, whichis made of spring steel, is passed through the heads ofthe locking screAvs. Some designers machine a largegroove around the piston at such a…
