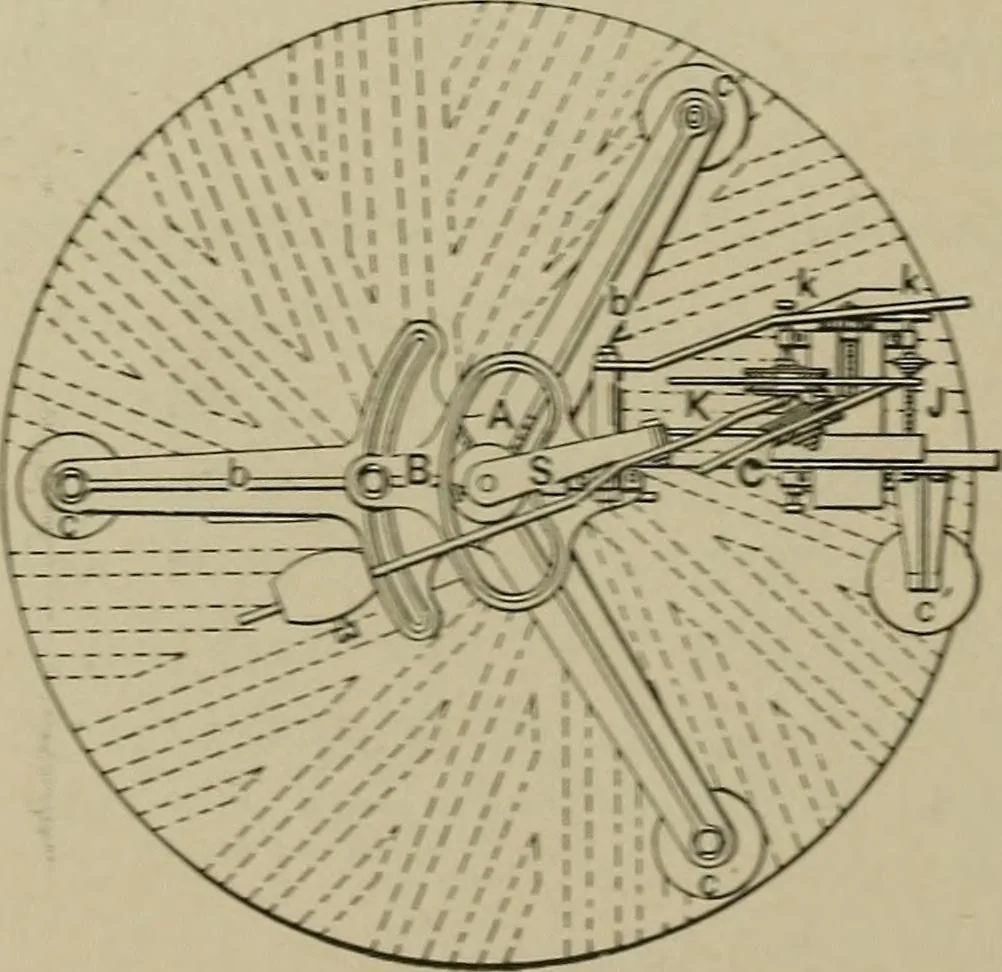

7qq. DIAMOND MILLSTONE-DRESSING MACHINE A achine for dressing millstones. The frame. A. has arms, b, b, terminating in feet, r7, which areprovided with set screws. A toolsupport. S. is pivoted to the center:: A. and is adjustable by mean- Isector. B. and slides on the arm. C.of the frame. Two disks… … MILL AND FACTORY APPLIANCES AND TOOLS, ETC. 303 rapid revolution, the successive blows of the diamonds act in a mannersimilar to that of a hand tool, and parallel grooves are cut in the faceof the stone. Three of these sets of parallel channels or grooves makeone division of the stone. The guide…
