Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 346

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 346

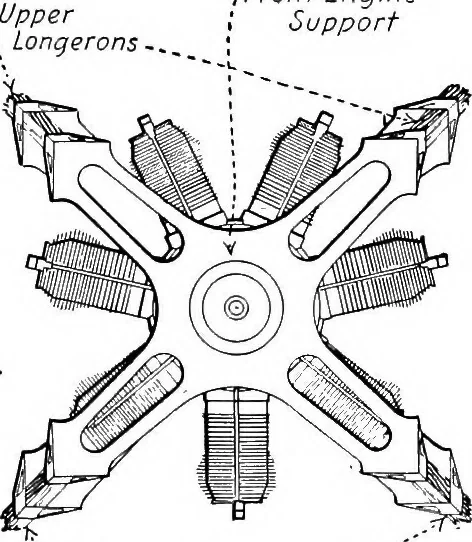

.Upper \ Longerons Front EngineSupport ..-Rear Engine Support.Crank-Shaft Carburetor … Tractor Screu •LowerLongeron Side View **-Lower Longerons-Front View Fig. 158.—How Gnome Rotary Motor May Be Attached to Airplane Fuselage Members. advice to enable those who are not thoroughly informedto locate them by a logical process of elimination. Theinternal-combustion motor, which is the…
