Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 399

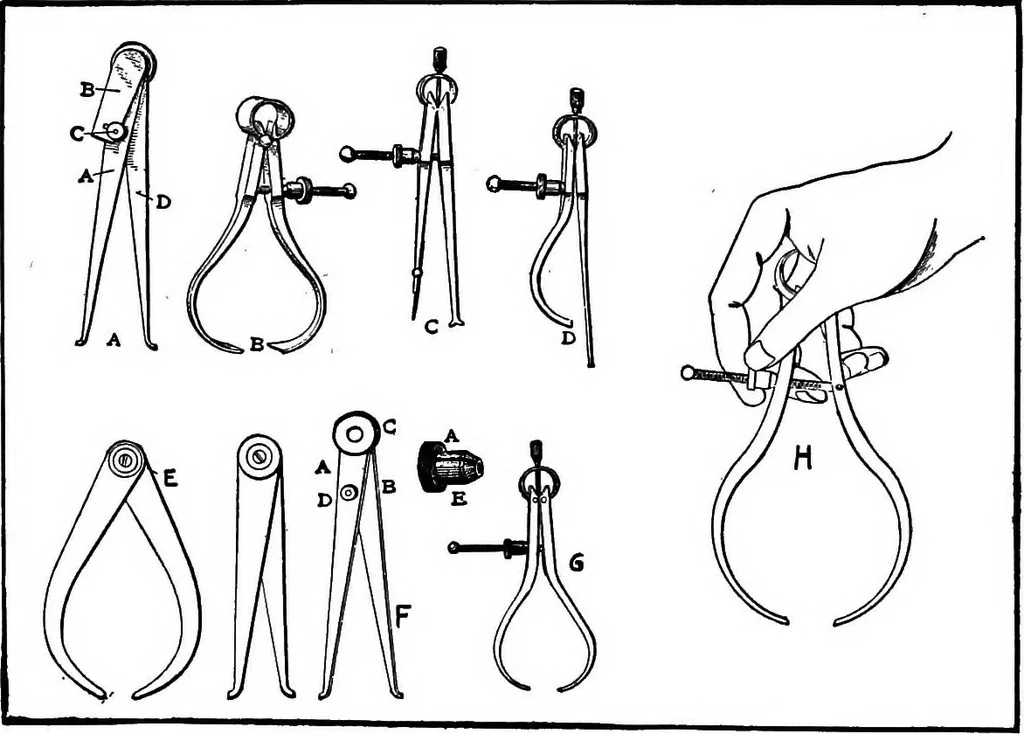

Engines is an inside caliper, consisting of two legs, A and D, anda ganging piece, B, which can be locked to leg A, or re-leased from that member by the screw, C. The object ofthis construction is to permit of measurements beingtaken at the bottom of a two diameter hole, where thepoint to be… … Fig. 174.—Common Forms of Inside and Outside Calipers. may be done without losing the setting, as the guide bar,B will remain in one position as determined by the sizeof the hole to be measured, while the leg A may be swungin to clear the obstruction as the calipers are lifted out.When it is…
Airplanes
