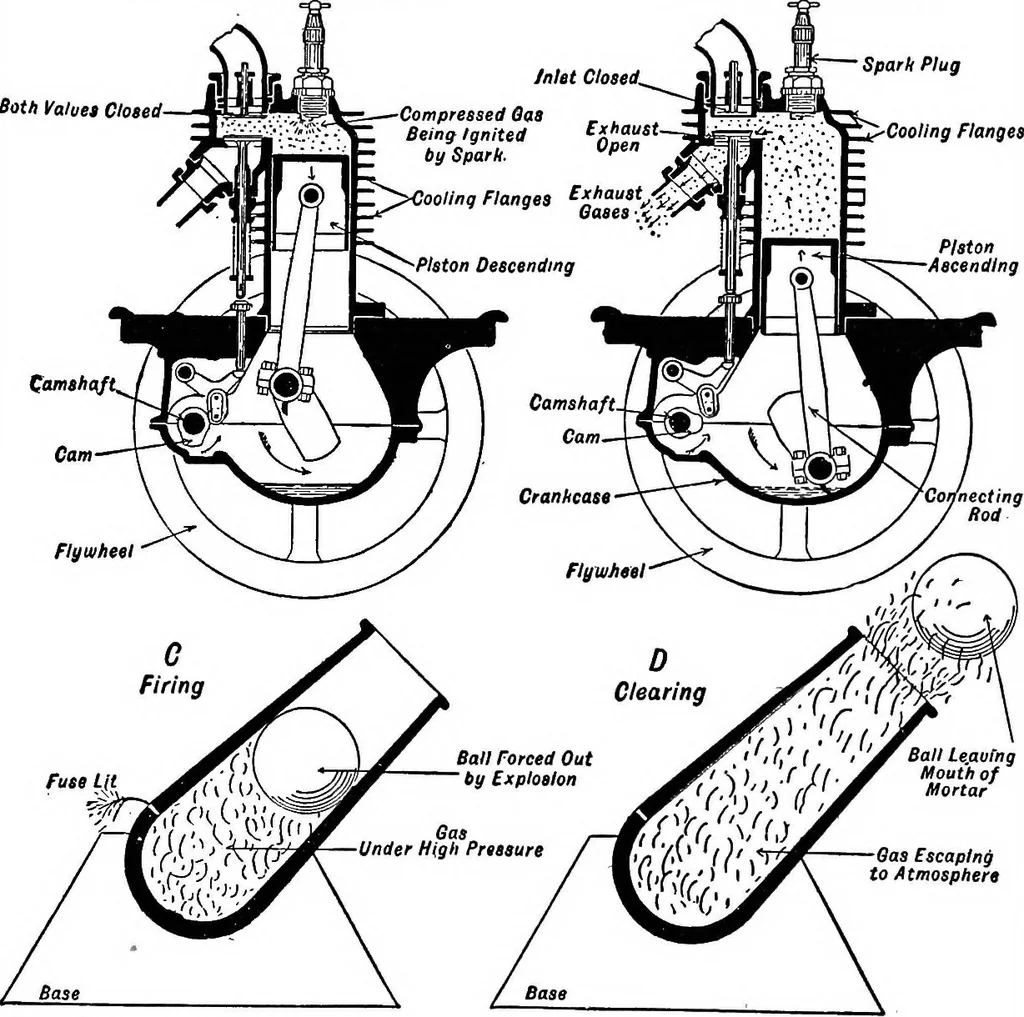

ration is shown at Fig. 5, A.The second operation is to compress this gas which isdone by an upward stroke of the piston as shown at Fig. Internal Combustion Engine Action 39 5, B. When the top of the compression stroke is reached,the gas is ignited and the piston is driven down towardthe open end… … 3. Powder Exploded. 4. Powder Gas Exhausted. Fig. 6.—Outlining Sepond Two Strokes of Piston in Four-Cycle Engine. return upward movement of the piston as shown at Fig.6, D during which time the exhaust valve is opened topermit the burnt gases to leave the cylinder. As soonas the piston reaches the…
