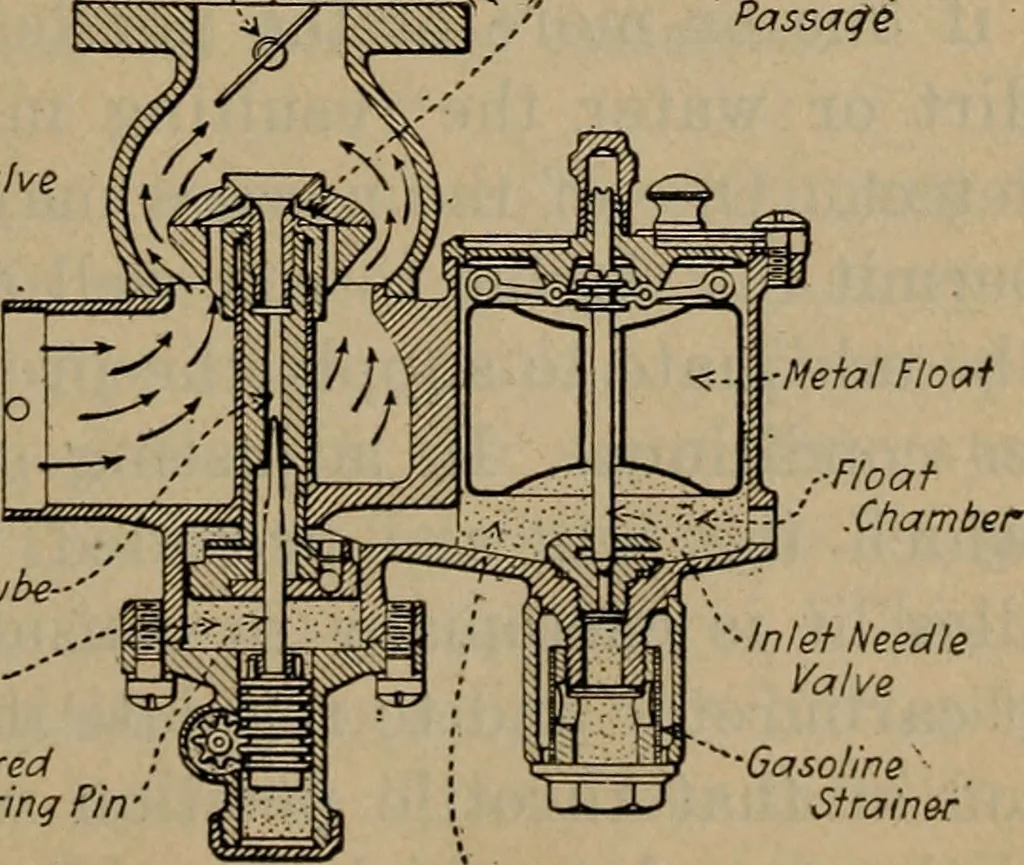

^MixingChamber Automatic^.Metering Valve AutomaticMetering Valve Air Chamber Throttle. /Primary Air Passage - Gasoline ^TaperedMeteringPin Aspiranf Tube-Dash Pot- TaperedMetering Pin … •Inlet NeedleValve ^Gasoline •Strainer Gasoline Passage Fig. 47.—The Stewart Metering Pin Carburetor. 130 Aviation Engines speeds, the other being placed in a larger air tube andhaving a slightly augmented bore so that it is employedon intermediate speeds. At high speeds both jets wouldbe used in…
