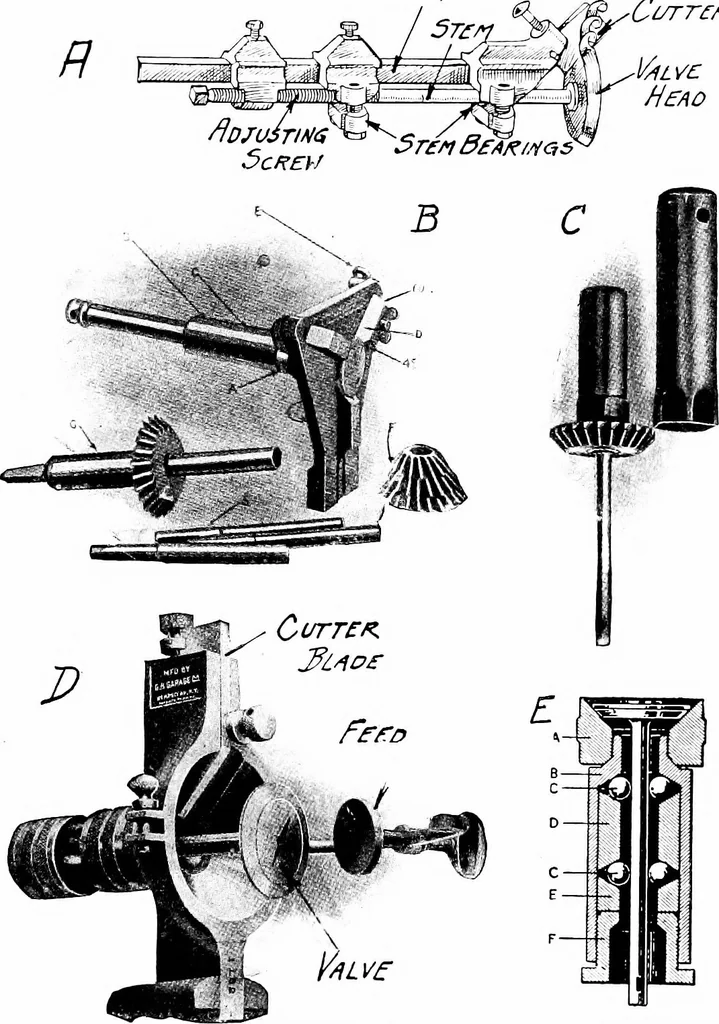

ove the mostof the roughness. Valves are made in two standardtapers, the angle being either 45 or 60 degrees. It is im-perative that the cutter blade be set correctly in orderthat the bevel is not changed. A set of valve truing andvalve-seat reaming cutters is shown at Fig. 183, B. Thisis adaptable… … \—\~ ^9 Iff B —fCM lo? c—aJ yk D -~.l I £_■ 1— Fig. 183.—Tools for Restoring Valve Head and Seats. of tool steel and have a bevel at each end, one at 45 de-grees, the other at 60 degrees. The valve seat reamershown at G will take any one of the heads shown at F. 428 Aviation Engines It will also…
