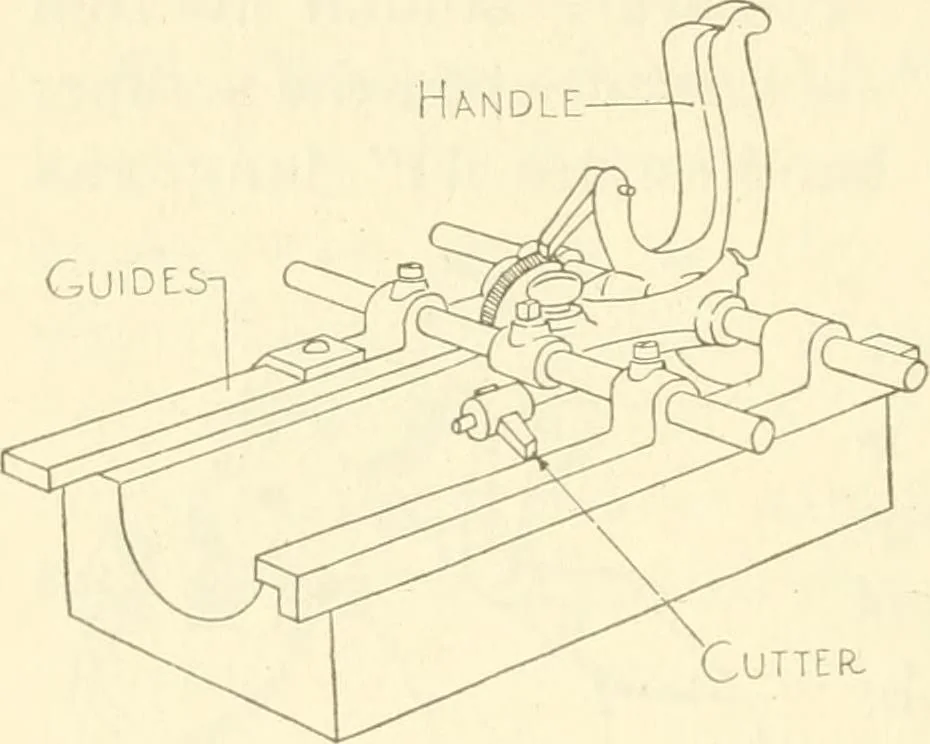

Fig. 80. Core-Box Plane. Handle- GUIDLS- the edges of the cut, the cutter must describe a semi-circular section. Without the additionalsections this plane willform boxes with diametersof y to 2i\ Additionalsections can be securedwhich make possible coreboxes with sections up to10 in diameter, each… … Cutter- Fig. 81.New Style Core-Box Plane. can be formed wuth this plane. Fig. 81 is an illustration of a core-box plane in whichthe cutter revolves in a semicircular arc while the planeitself moves in a horizontal direction with reference tothe stock. The manner of using these planes is…
